Bolt Plan For Engine Oil Pan Lower Section - AR01.45-P-7555-01MRT
Engine 256.9
OIL PAN, OIL LEVEL SENSOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA01.45-P-1001-01MRT | Bolt, oil pan lower part to oil pan upper part | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 10 | ||

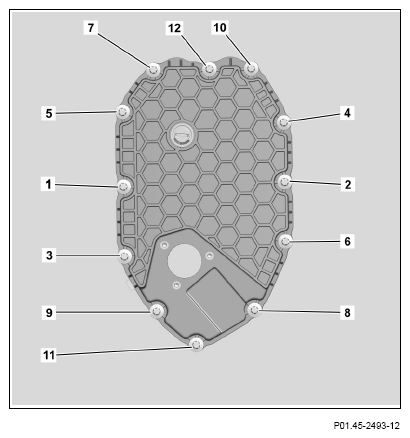

Shown on engine 256.9 in model 222 without code M005 (vehicles with 4MATIC/all-wheel drive)
- Tighten screws (1 to 12) in numerical order to stage one
.
- Tighten screws (1 to 12) in numerical order to stage two

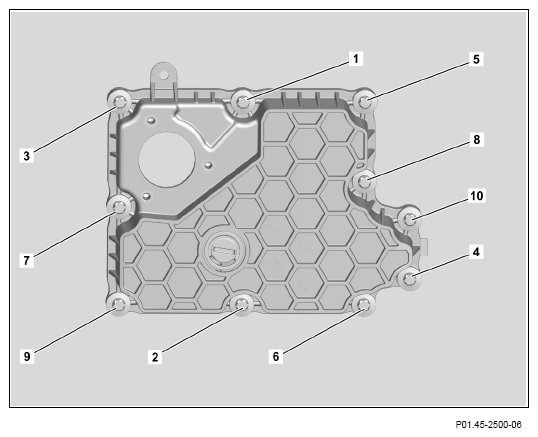

Shown on engine 256.9 with code M005 (vehicles with 4MATIC-/all-wheel drive)
- Tighten screws (1 to 10) in numerical order to first stage
- Tighten screws (1 to 10) in numerical order to second stage

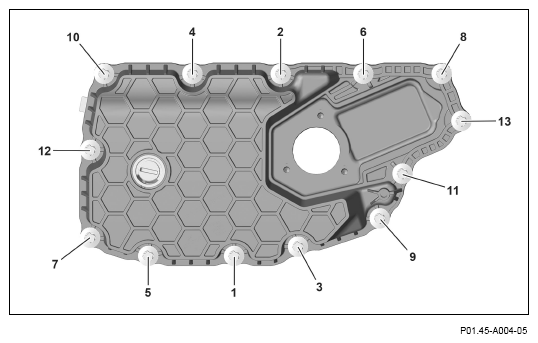

Shown on Engine 256.9 In Model 167
- Tighten screws (1 to 13) in numerical order to stage one
- Tighten screws (1 to 13) in numerical order to stage two

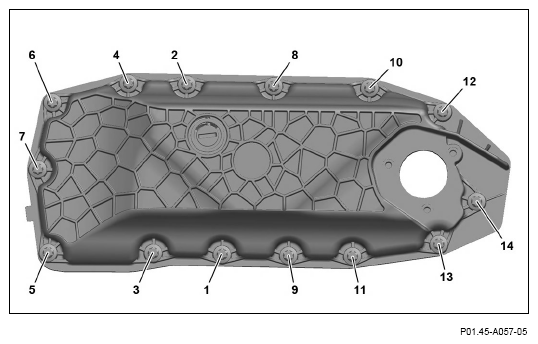

Shown on engine 256.9 in model 223 without code M005 (vehicles with 4MATIC/all-wheel drive)
- Tighten bolts (1 to 14) in numerical order to stage one
- Tighten bolts (1 to 14) in numerical order to stage two

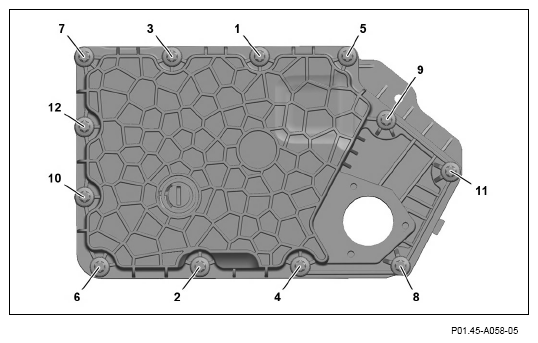

Shown on engine 256.9 in model 223 with code M005 (vehicles with 4MATIC/all-wheel drive)
- Tighten screws (1 to 12) in numerical order to stage one
- Tighten screws (1 to 12) in numerical order to stage two
