Remove/Install Engine Oil Fill Level Sensor - AR18.40-P-5116MSC
Engine 256.9 in model 167
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain engine oil. | ||
| AP18.00-P-0101MRT | |||

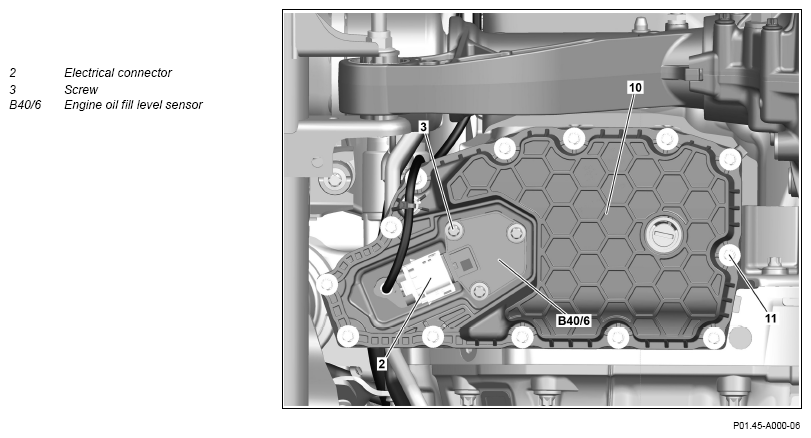

| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove screws (3) and remove engine oil fill level sensor (B40/6). | ||
| *BA01.45-P-1002-01MRT | |||
| 4 | Install in the reverse order. |
OIL PAN, OIL LEVEL SENSOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA01.45-P-1002-01MRT | Screw/bolt, oil level sensor to oil pan lower part | Nm | 8 |
