Remove/Install Right Fuel Rail With Injectors - AR07.03-P-1051MNP

Engine 177 in model 167

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting. Risk of injury To skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury To skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove
1	Remove right high-pressure line.		AR07.03-P-1002MNP
2	Remove right air filter housing.		AR09.10-P-1152MNP
3	Remove bleed line (2) of the oil separator from the right cylinder head cover and place to one side.
4	Remove soundproofings of rail (4).
5	Remove right low-pressure line from the cylinder head cover and remove high-pressure fuel pump.		AR07.03-P-1121MNP
6	Disconnect engine wiring harness.		AR15.18-P-1000-06XGC
	Notes on safety-relevant components		AH00.00-Z-0019-01A

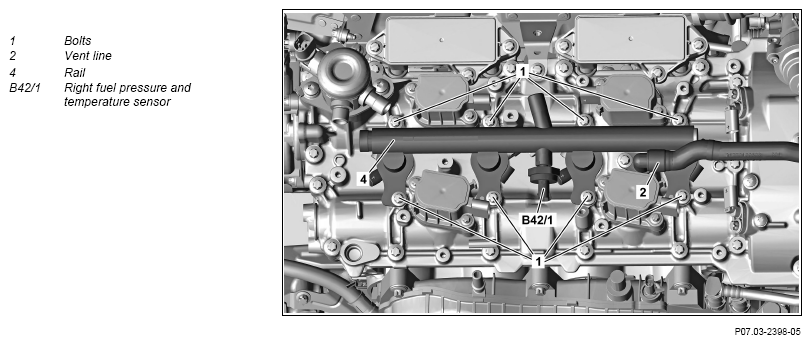

7	Remove bolts (1).	Unscrew screws (1) alternately by half a revolution in each case. Start in the center of the rail (4) and work outward. Otherwise, damage to the rail (4) will occur.
8	Remove clips (11).
9	Remove rail (4) from the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) and seal openings with suitable stop plugs.	Record plug	Fig 2

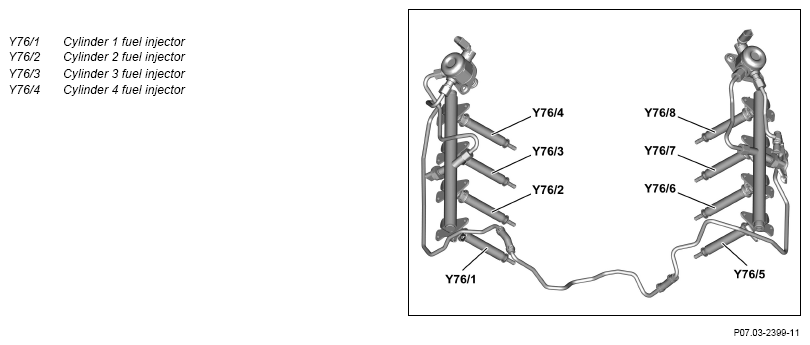

10	Mark fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) relative to the respective cylinder.	When reusing the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4).
11	Pull fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) out of the cylinder head and seal injector shaft holes with suitable stop plugs.		AR07.03-P-0004-03MM
		Puller	Fig 4
		Plug	Fig 1
	Check
12	Check fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) for external damage.	When reusing the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4). If damage is present, ↓ replace respective affected fuel injector.
13	Check connection of the fuel line on the rail (4) for damage.	If the connection on the rail (4) is damaged, ↓ replace rail (4).
14	Check right high-pressure line for damage		AR07.03-P-1010-03MNA
		Commercially available devices/tools Feeler Gauge
		Assembly cleaner If damage is present, ↓ replace right high-pressure line.	*BR00.45-Z-1028-04A
			AR07.03-P-1002MNP
	Install
15	Read off injector injection quantity adjustment coding on the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) and note down.	When installing new fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4).
16	Clean fuel connections on the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4).	For cleaning the fuel connections, hold downwards. Otherwise, the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) will fail. If the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) are replaced, install them immediately after removing the transport protective cap. Leaks can occur otherwise.
		Assembly cleaner	*BR00.45-Z-1028-04A
17	Install new sealing packages of the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) on the rail (4).		AR07.03-P-0004-02MM
		Assembly cleaner	*BR00.45-Z-1028-04A
		Drift	Fig 5

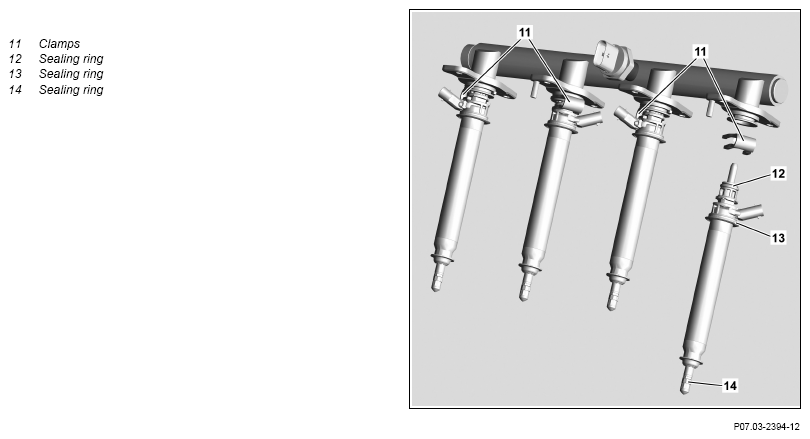

18	Install new sealing rings (12, 13, 14) on the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4).		AR07.03-P-0004-01MM
		Assembly cleaner	*BR00.45-Z-1028-04A
		Assembly tool	Fig 3
	Clean
19	Assign fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) to the respective cylinders and clean injector shaft holes.	When reusing the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4), insert them into the cylinders, in which they were previously installed. Engine damage can occur otherwise.
20	Install fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) on the rail (4) and fasten them with clips (11).	Install clips (11).
21	Insert rail (4) with the fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4) into the right cylinder head.
22	Tighten screws (1).	Screw in screws (1) alternately by half a revolution in each case. Start in the center of the rail (4) and work outward. Otherwise, damage to the rail (4) will occur.
		Bolt, fuel distributor to cylinder head cover	*BA07.52-P-1001-01J
23	Connect engine wiring harness.		AR15.18-P-1000-06XGC
	Notes on safety-relevant components		AH00.00-Z-0019-01A
		Bolt, engine wiring harness ground to cylinder head cover	*BA15.10-P-1003-05F
		Screw, cable duct to cylinder head cover/charge air cooler/heat shield, right	*BA15.18-P-1003-01G
24	Install new fuel pressure and temperature sensor on right (B42/1).	When installing new rail (4).
			AR07.04-P-0202MNO
25	Attach right low-pressure line to the cylinder head cover and high-pressure fuel pump.		AR07.03-P-1121MNP
26	Install soundproofing on the rail (4).
27	Attach bleed line (2) of the oil separator to the right cylinder head cover.	Bolt, vent line to cylinder head cover/turbocharger	*BA01.20-P-1001-01J
28	Install right high-pressure line.		AR07.03-P-1002MNP
		Only install upper engine cover after leak test of high-pressure fuel circuit.
29	Install right air filter housing.		AR09.10-P-1152MNP
30	Store injector injection quantity adjustment coding in ME-SFI [ME] control unit (N3/10).	When installing new fuel injectors for cylinders 1 to 4 (Y76/1 to Y76/4).
			AD00.00-P-2000-06ME
	Check
31	Check fuel high-pressure circuit for leak tightness.		AR07.03-P-1010-04MM
			AD00.00-P-2000-06ME
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
32	Perform engine test run. While doing so, check engine for proper operation and leak tightness
	Install
33	Install upper engine cover.
			AP01.10-P-2405-01E
