Disconnect/Connect Engine Wiring Harness To Remove Right Cylinder Head Cover - AR15.18-P-1000-06XGC
Engine 177 In Model 167
Engine 177 in model 463
as of model year 2019
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
GROUND STRAP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1003-05F | Bolt, Engine wiring harness ground to cylinder head cover | Nm | 9 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.18-P-1003-01G | Screw, cable duct to cylinder head cover/charge air cooler/heat shield, right | Nm | 9 |

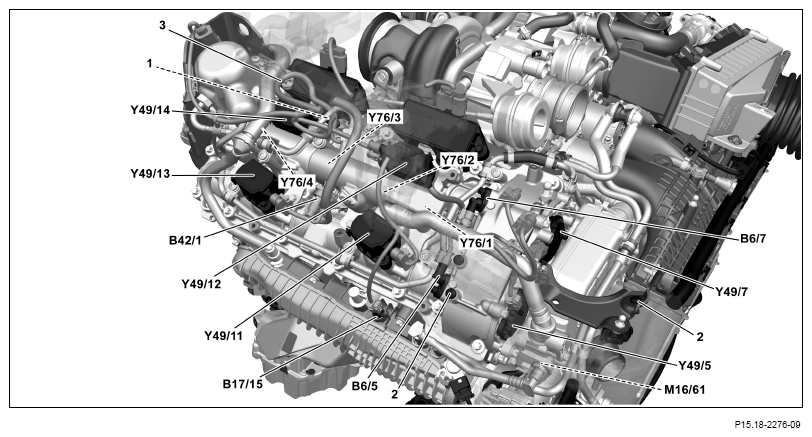

- Unclip retaining clip (3).
- Release and disconnect electrical connector of cylinder 2 intake CAMTRONIC actuator (Y49/11).
- Release and disconnect electrical connection of CAMTRONIC actuator for exhaust cylinder 2 (Y49/12).
- Release and disconnect electrical connector of CAMTRONIC actuator for exhaust cylinder 3 (Y49/13).
- Release and disconnect electrical connector of CAMTRONIC actuator for exhaust cylinder 3 (Y49/14).
- Remove screw/bolt (1)
.
- Release and disconnect electrical connectors of the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
- Remove screw/bolts (2)
- Release and disconnect electrical connector from right fuel pressure and temperature sensor (B42/1).
- Release and disconnect electrical connector from right exhaust camshaft Hall sensor (B6/7).
- Release and disconnect electrical connector from right intake camshaft Hall sensor (B6/5).
- Release and disconnect electrical connector from right exhaust camshaft adjustment solenoid (Y49/7).
- Release and disconnect electrical connector from right intake camshaft adjustment solenoid (Y49/5).
- Release and disconnect electrical connector of right charge air temperature sensor (B17/15).
- Release and disconnect electrical connector of right throttle valve actuator (M16/61).
- Connect in reverse order.
