Rear Panel CROSSMEMBER Removal And Installation - Ar64.10-P-0500MEX
Model 167.9
with code M036 (Maybach version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Remove rear panel. | AR64.10-P-5746MEX | |

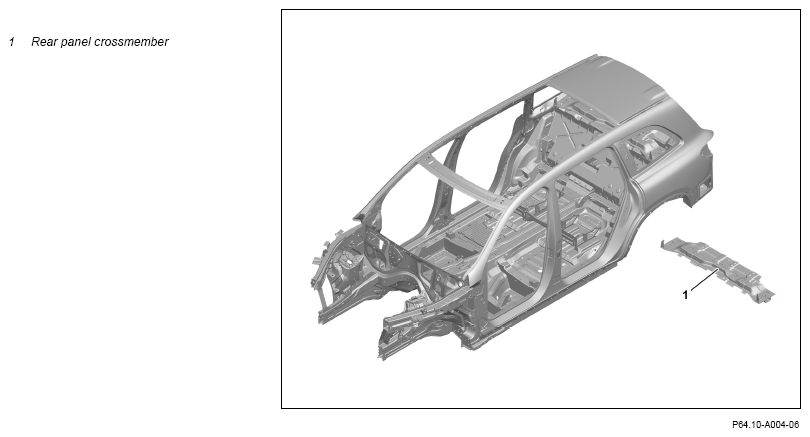

| 3 | Remove rear panel crossmember (1). | AR64.10-P-0500-01MEX | |
| Install | |||
| General information on riveting | AH60.00-P-0003-01N | ||
| 4 | Install rear panel crossmember (1). | AR64.10-P-0500-03MEX | |
| *BA64.20-P-1008-01G | |||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Blind rivet Y7 6.4 x 14 (clamping range 2.6 mm to 6 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1045-13A | ||
| 5 | Clean sheet metal flanges. | ||
| 6 | Install rear panel. | AR64.10-P-5746MEX | |
| 7 | Reinstall all detachable parts in area of repair point. |
REAR END
| Number | Designation | Model 167.9 with code M036 (Maybach version) | |
|---|---|---|---|
| BA64.20-P-1008-01G | Bolt, rear panel crossmember to rear panel mounting support | Nm | 23 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1045-13A | Blind rivet Y7 6.4 x 14 (clamping range 2.6 mm to 6 mm, draw-off strength min. 15.5 kN) | A 000 991 55 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
