Rear Wall Removal And Installation - Ar64.10-P-5746MEX

Model 167.9

with code M036 (Maybach version)

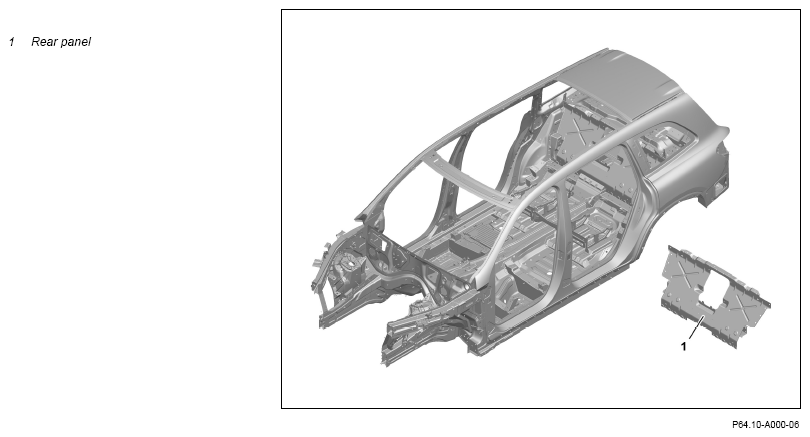

Fig 1: Rear Wall Panel Component Location (W/Code M036 (Maybach Version))

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Remove rear panel (1).		AR64.10-P-5746-01MEX
	Install
	General information on riveting		AH60.00-P-0003-01N
3	Install rear wall (1).		AR64.10-P-5746-03MEX
		Screw, rear panel to body	*BA64.20-P-1005-01G
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet Y7 6.4 x 14 (clamping range 2.6 mm to 6 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1045-13A
4	Clean sheet metal flanges.
5	Clean repair area.
6	Prime repair areas using a primer filler
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
7	Seal seam after repair.		AR97.10-P-4000ME
8	Paint repair areas and adjacent surfaces
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
9	Supplement cavity preservation.		AR97.20-P-1500ME
10	Reinstall detachable parts in area of repair point.

REAR END

Number	Designation		Model 167.9 with code M036 (Maybach version)
BA64.20-P-1005-01G	Screw, rear panel to body	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1045-13A	Blind rivet Y7 6.4 x 14 (clamping range 2.6 mm to 6 mm, draw-off strength min. 15.5 kN)	A 000 991 55 32
BR00.45-Z-1056-07A	1K-zinc dust paint	A 000 986 28 00
