Rear Panel CROSSMEMBER Removal - Ar64.10-P-0500-01MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

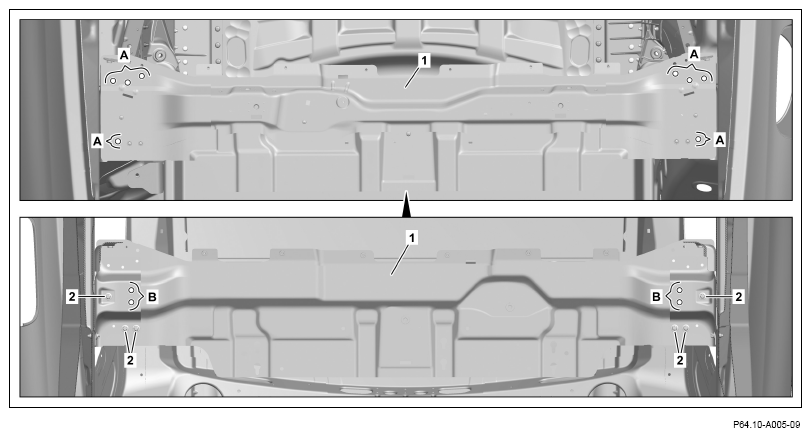

1. Drill through the rivets on the rear panel crossmember (1) with a diameter of 6.5 mm (areas A, B).

   Drill through rivets from the bottom (areas B).

2. Remove screws (2) from the rear panel crossmember (1).
3. Remove rear panel crossmember (1).
