Remove/Install Lower Liftgate Trim - AR72.20-P-6617ME
Model 167
Shown except code M036 (Maybach version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove handle (2) at removal opening (arrow A). | Model 167 except code M036 (Maybach version) | AR72.20-P-6620-01ME |

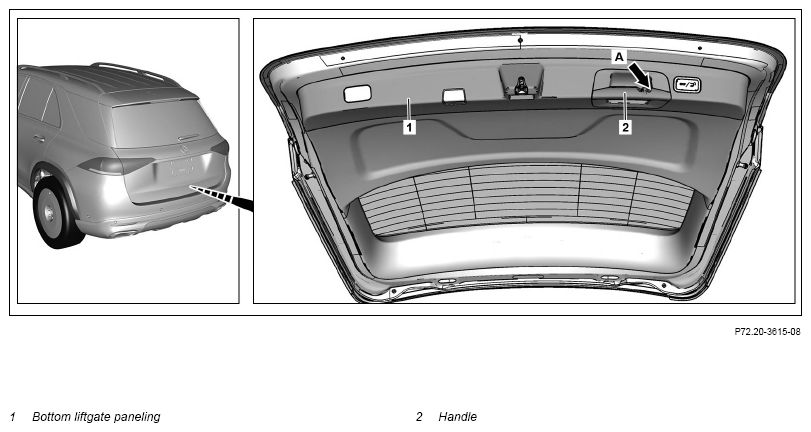

| Fig 1 | |||
| 3 | Unclip lower tailgate trim (1) starting at lower area and remove until electrical connectors can be accessed. | Fig 1 | |
| 4 | Release and disconnect electrical connectors and remove lower tailgate trim (1). | ||
| Check | |||
| 5 | Check catch hooks of lower tailgate trim (1) for damage. | If there is a problem, ↓ Replace bottom liftgate trim (1). |
|
| Install | |||
| 6 | Install the handle (2) in the lower liftgate trim (1). | Model 167 except code M036 (Maybach version) | AR72.20-P-6620-01ME |
| 7 | Connect electrical connectors, position lower tailgate trim (1) on tailgate and clip in starting at upper area. | ||
| Check | |||
| 8 | Check that handle (2) is firmly seated on lower tailgate trim (1). | Model 167 except code M036 (Maybach version) | AR72.20-P-6617-01MFA |
