Retrofit Rear Mercedes-Benz Dashcam With Existing Front Dashcam - AZ54.71-P-0003MEC

Model 167.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Release fuse and relay module on driver's side.
			AR54.15-P-0003ME
2	Remove A-pillar trim on driver's side.
			AR68.30-P-4050ME
3	Remove upper B-pillar trim on driver's side and place it to one side with the seat belt attached.
			AR68.30-P-4700ME
4	Remove covers over mounting eyes for driver's side partition net.	Model 167.3 with code U40 (Safety net for luggage compartment cover) Long wedge	Fig 1
5	Remove rear interior lamp on driver's side.	Long wedge	Fig 1
6	Remove left C-pillar trim and place to one side with attached seat belt.
			AR68.30-P-4490MEC
7	Remove overhead control panel control unit.		AR82.20-P-1000ME
	Install
8	Retrofit rear dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0003-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
9	Remove cover for rain and light sensor.
			AR82.30-P-7801ME
10	Remove both sun visors.
			AR68.60-P-5480ME
11	Pull off front and rear edge guard on driver's side in area of roof lining.
12	Release front and rear roof lining on driver's side.
13	Remove upper liftgate trim.
			AR72.20-P-6631MEC
	Install
14	Retrofit wiring harness for dashcam.		AZ54.71-P-0003-01MEC
		Silicon Spray Silicone-Fluid, 0.4 l art. no. 0893 221 000	*BR00.45-Z-1133-06A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A

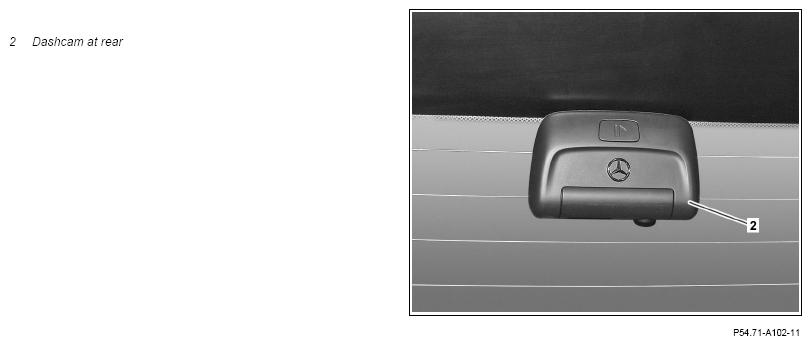

15	Latch dashcam at rear (2) into dashcam mount opposite direction of arrow on eject button.	Mount dashcam at rear (2) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
16	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
17	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
18	Attach "Mercedes-Benz dashcam retrofitted at rear as perAZ54.71-P-0003MEC" note under field organization texts to design group 54, design group 67 and design group 68.
	Check
19	Perform function test.	See Owner's Manual.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1133-06A	Silicon Spray Silicone-Fluid, 0.4 l art. no. 0893 221 000	Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 http://www.wuerth.de
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XENTRY Portal parts information)	Dashcam parts kit	1
