Remove/Install Trim At C-Pillar - AR68.30-P-4490MEC
Model 167.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove top side load compartment trim. | AR68.30-P-1186MEC | |
| 2 | Remove cover (2). | ||
| 3 | Release edge guard (1) in the working area. Remove cover (2). | ||
| 4 | Unclip C-pillar trim (3) (arrows A) and remove. | ||

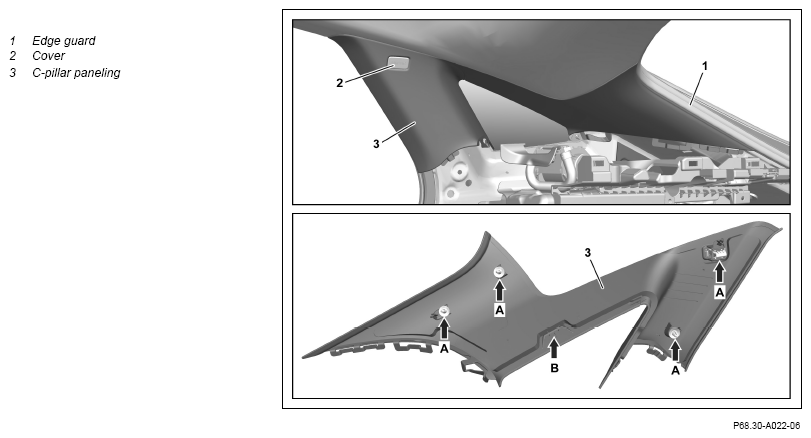

| Fig 1 | |||
| 5 | Install in the reverse order. |
