Remove/Install Sun Visor - AR68.60-P-5480ME

Model 167

Courtesy of MERCEDES-BENZ USA

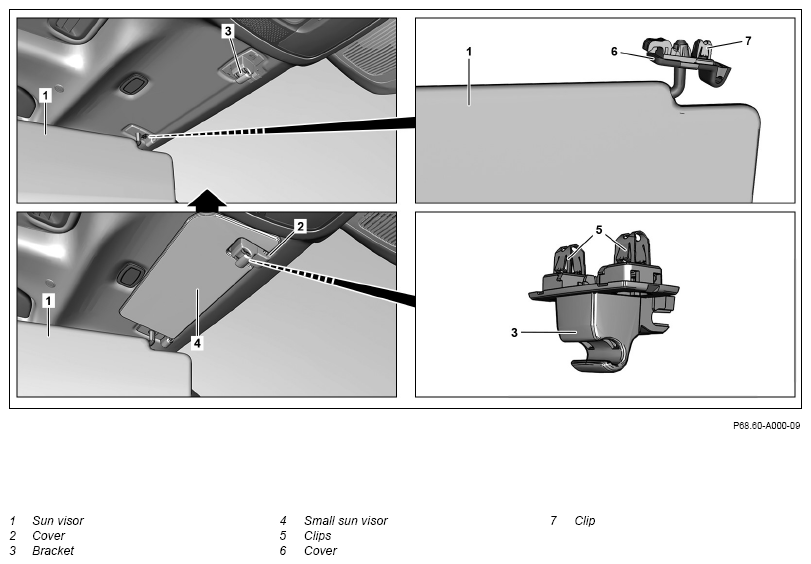

Shown on left side of vehicle

	Remove/install
1	Fold down large sun visor (1) and swivel to side.
2	Unclip cover (2) at bracket (3) and remove.	Long wedge	Fig 1
3	Fold down small sun visor (4) and swivel on inside toward front out of bracket (3).	Model 167 with code 543 (Extendable sun visor)
4	Press clips (5) together, unclip and remove bracket (3).	Ensure correct seat of clips (5).
5	Unclip hinge-side cover (6) and remove.	Long wedge	Fig 1
6	Press clip (7) together, remove hinge together with large sun visor (1).	Check that clip (7) is correctly seated.
7	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
