Remove/Install Panoramic Sliding Roof Frame - AR77.21-P-0801ME

Model 167.1/9

With Code 413 (Panoramic sliding sunroof/glass roof)

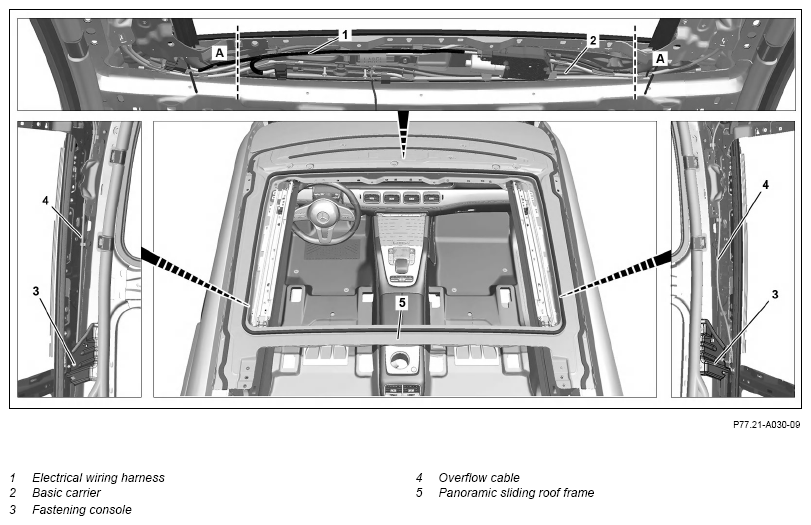

G15038730Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
Notice  Notes on removal/installation of bonded elements of panoramic roof   AH77.21-P-0001-01A
Notice  Notes on removal/installation of windows   AH67.10-P-1000-02RT
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Remove front fixed element of panoramic sliding sunroof.   AR77.21-P-0803ME
2 Remove rear fixed element of panoramic sliding sunroof.   AR77.21-P-0802ME
3 Cover edges on the body and windshield in the working area and mask off. Adhesive fabric tape *BR00.45-Z-1062-02A
    SPECIAL TOOL Set of shields Fig 1
4 Remove panoramic sliding sunroof roller sunblind drive unit (M12/5).   AR77.21-P-0493ME
5 Remove panoramic sliding sunroof motor drive unit (A98m1).   AR77.21-P-1000ME
6 Remove electrical wiring harness (1) of the panoramic sliding sunroof roller sunblind drive unit (M12/5) and the panoramic sliding sunroof motor drive unit (A98m1).
7 Cut through the drive cables of the panoramic sliding sunroof roller sunblind drive unit (M12/5) and the panoramic sliding sunroof motor drive unit (A98m1) on the separation lines (A) with a suitable tool.
8 Remove basic carrier (2) of the panoramic sliding sunroof roller sunblind drive unit (M12/5) and the panoramic sliding sunroof motor drive unit (A98m1).
9 Remove mounting supports (3) of the left and right crossbar.
10 Remove left and right overflow cable (4) from the panoramic sliding sunroof frame (5).
WARNING Risk of injury  due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs Wear cut-proof gloves and safety glasses. AS77.21-Z-0002-01A
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
11 Cut out panoramic sliding sunroof frame (5) and remove.   AR77.21-P-0801-01ME
    IMPORTANT Helper required.
    SPECIAL TOOL Set of shields Fig 1
INSTALLING Install
Notice  Notes on handling adhesive   AH67.00-P-1000-01A
12 Prepare body flange on panoramic sliding sunroof frame (5) for installation.   AR77.21-P-0801-03ME
13 Remove sliding roof panel from the new panoramic sliding sunroof frame (5).   AR77.21-P-0500ME
14 Prepare panoramic sliding sunroof frame (5) for installation.   AR77.21-P-0801-02ME
    IMPORTANT Four helpers required.
    Distance between top edge of window and front edge of roof *BE67.10-P-1001-02KOA
    Adhesive fabric tape *BR00.45-Z-1062-02A
    SPECIAL TOOL Feeler gauge Fig 3
15 Install trims on panoramic sliding sunroof frame (5).   AR77.21-P-6920ME
WARNING Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
16 Apply adhesive material to the panoramic sliding sunroof frame (5).   AR77.21-P-0801-04ME
REFER TO SPECIAL TOOLS 000 588 00 72 00 Sealing and corrosion protection gun   WS97.00-P-0001B
    SPECIAL TOOL Adapter Fig 2
17 Install panoramic sliding sunroof frame (5).   AR77.21-P-0801-05ME
    NOTES
Do not move vehicle for at least 10 h after gluing in the rear fixed element (1). The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.

    IMPORTANT Five helpers required.
18 Remove weights for weighting down panoramic sliding sunroof frame (5).
19 Install sliding roof panel of the new panoramic sliding sunroof frame (5).   AR77.21-P-0500ME
20 Install mounting supports (3) of the left and right crossbar.
21 Install electrical wiring harness (1) of the panoramic sliding sunroof roller sunblind drive unit (M12/5) and panoramic sliding sunroof motor drive unit (A98m1). If the electrical wiring harness (1) is reused.
    NOTES
Ensure that the electrical wiring harness (1) is routed and padded correctly.
To prevent noise development during vehicle operation.

22 Install panoramic sliding sunroof motor drive unit (A98m1). If the panoramic sliding sunroof motor drive unit (A98m1) is reused.
      AR77.21-P-1000ME
23 Install panoramic sliding sunroof drive unit roller sunblind (M12/5). If the panoramic sliding sunroof roller sunblind drive unit (M12/5) is reused.
      AR77.21-P-0493ME
24 Install rear fixed element of panoramic sliding sunroof.   AR77.21-P-0802ME
25 Install front fixed element of panoramic sliding sunroof.   AR77.21-P-0803ME
INSPECT Check
26 Check strength of adhesively bonded connection by means of the produced reference adhesive bead. NOTES
Do not move vehicle for at least 10 h after gluing in the panoramic sliding sunroof frame (5).
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.

CLEAN Clean
27 Remove fabric tape and clean working area. Assembly cleaner *BR00.45-Z-1028-04A
    Adhesive fabric tape *BR00.45-Z-1062-02A
  Finishing activity
28 Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
WINDSHIELD

Number Designation Model 167 (except 167.3)
BE67.10-P-1001-02KOA Distance between top edge of window Dimension "A" and front edge of roof mm 2, 5 (±1, 0)
Fig 1: Identifying Set Of Shields (222 589 01 31 00)
G15038731Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter (000 589 86 63 00)
G13659549Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Feeler Gauge (129 589 03 21 00)
G13659521Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1062-02A Adhesive fabric tape A 007 989 28 85
