Remove/Install Panoramic Sliding Roof Drive Unit - AR77.21-P-1000ME
Model 167.1/9
With Code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

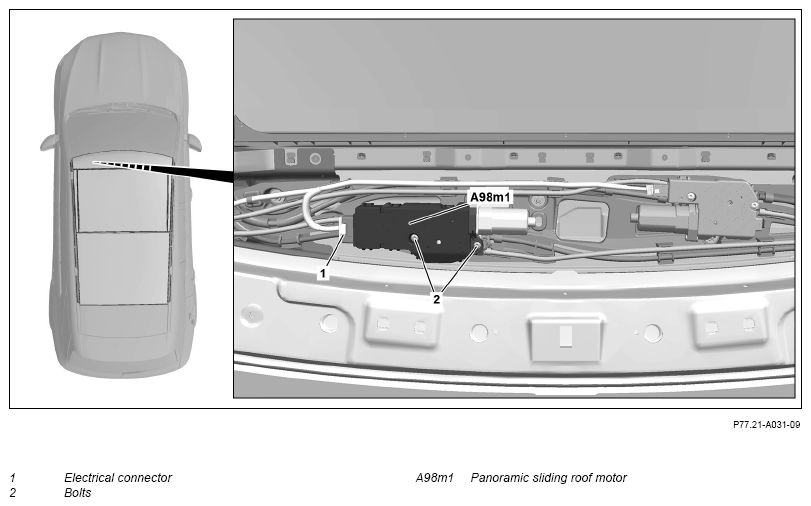

| 1 | Lower roof lining until the panoramic sliding sunroof motor (A98m1) is accessible. | AR68.30-P-4300ME | |
| 2 | Release and disconnect electrical connector (1) from the panoramic sliding sunroof motor (A98m1). | ||
| 3 | Secure panoramic sliding sunroof motor (A98m1) against falling down, remove screws (2), and remove panoramic sliding sunroof motor (A98m1). | ||
| 4 | Install in the reverse order | ||
| Normalizing | |||
| 5 | Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06ME |
