Remove/Install Headliner - AR68.30-P-4300ME
Model 167.1/9
MODIFICATION NOTES
| 05.02.2021 | 1 Operation step added. | 1 Operation step 25 | 1 |
Shown on model 167.1
Shown on model 167.1 with code 413 (Panoramic sliding sunroof/glass roof), with code 811 (High-end sound system), and with code U40 (Safety net for luggage compartment cover)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove spare wheel with stowage tray in load compartment. | Model 167.117/154 with code 669 (Spare tire on steel rim) Model 167.9 with code 308 (Refrigerated compartment in rear passenger compartment) with code M036 (Maybach version) Model 167.9 with code 669 (Spare tire on steel rim) with code 811 (High-End sound system) Model 167.9 with code 669 (Spare tire on steel rim) with code U68 (Active engine sound generator) |
|
| 2 | Remove load compartment cover. | Model 167.1 with code 541 (Combined luggage cover incl. safety net) Model 167.1 with code 723 (Load compartment cover) Model 167.9 |
|
| 3 | Remove the partition net in the vehicle interior | Model 167.1/9 with code U40 (Safety net for luggage cover) Model 167.1 with code 541 (Combined luggage cover incl. safety net) |
|
| 4.1 | Completely open sliding roof lining. | Model 167.1/9 with code 414 (Electric sunroof, glass version |
|
| 4.2 | Completely open roller sunblind on panoramic sliding sunroof. | Model 167.1/9 with code 413 (Panoramic sliding sunroof/glass roof) |
|
| 5 | Remove overhead control panel control unit. | AR82.20-P-1000ME | |

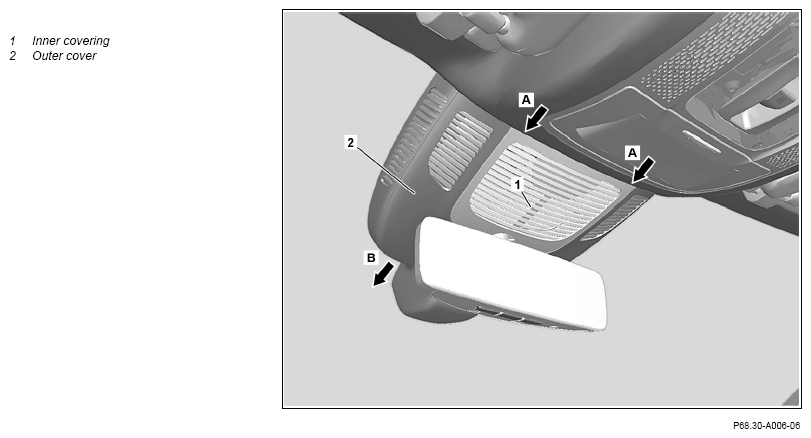

| 6 | Unclip inner cover (1) of inside rearview mirror using suitable tool (arrows A) and remove towards rear. | ||
| 7 | Slide outer cover (2) of inside rearview mirror towards front out of guides (arrow B). | ||
| 8 | Remove sun visors. | AR68.60-P-5480ME | |
| 9 | Remove grab handles from roof. | AR68.30-P-4330ME | |
| 10 | Detach the edge guard on the door cutouts in the area of the headliner (7). | ||

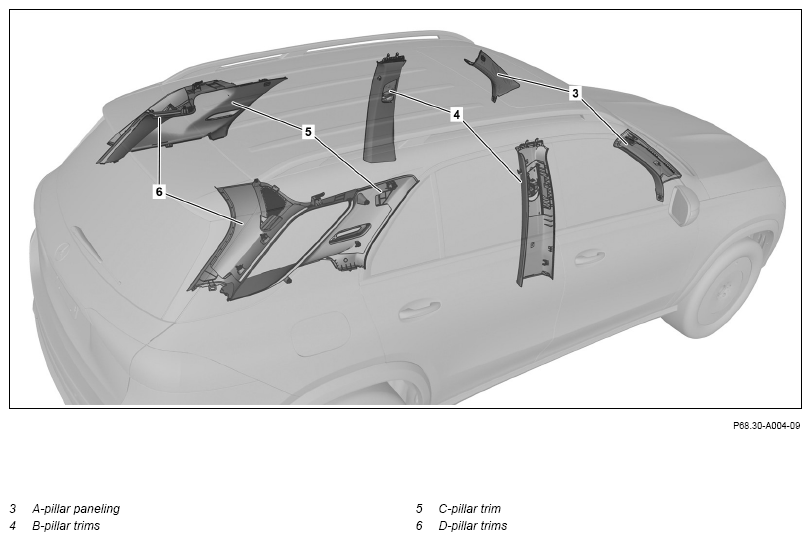

| 11 | Remove A-pillar trims (3). | AR68.30-P-4050ME | |
| 12 | Remove B-pillar trims (4) at top. | AR68.30-P-4700ME | |
| 13 | Remove C-pillar trims (5). | Model 167.1 | AR68.30-P-4490ME |
| Model 167.9 Model 167.9 except code M036 (Maybach version) Do not remove the belt end fittings. The C-pillar paneling (5) remains in the vehicle interior. |
AR68.30-P-4490MEX | ||
| 14 | Remove the D-pillar paneling (6). | Model 167.1 | AR68.30-P-4497ME |
| Model 167.9 except code M036 (Maybach version) |
AR68.30-P-4497MEX | ||
| Model 167.9 with code M036 (Maybach version) Model 167.9 except code M036 (Maybach version) Do not remove the belt end fittings. The D-pillar paneling (6) remains in the vehicle interior. |
AR68.30-P-4497MEM | ||
| 15 | Detach the edge guard for the tailgate opening in the area of the headliner (7). | ||
| 16 | Fold in 3rd seat row rear seats. | Model 167.1 with code 847 (3rd seat row) Model 167.9 with code 845 (Electrically folding 3rd seat row) |
|
| 17.1 | Fold seat backrests of rear seats forward. | Model 167.1 Model 167.9 except code M036 (Maybach version) |
|
| 17.2 | Fully lower head restraints of rear seats and move seat backrests of rear seats all the way to the rear. | Model 167.9 with code M036 (Maybach version) |
|
| 18 | Fully lower front seats and move to foremost position, move backrests of front seats towards rear. | ||
| 19 | Release and disconnect electrical connector (9) at left D-pillar. | ||
| 20 | Remove the cover panels for the air vents together with the headliner (7) from the air vents. | Model 167.9 with code 582 (Air conditioning, rear) |
|
| 21 | Unlock the lock for the frame (10) and detach j it from the body. | ||

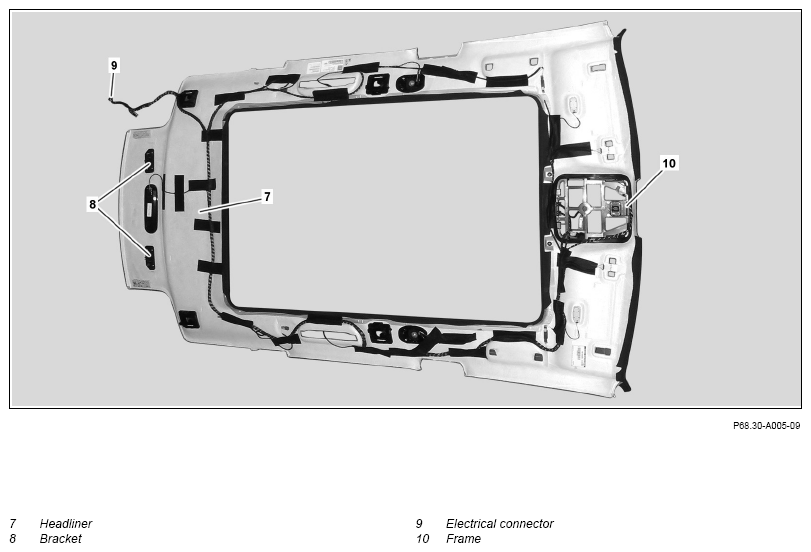

| 22 | Pull the headliner (7) back slightly and unhook at the holders (8). | ||
| 23 | Release roof lining (7) from roof. | with code 414 (Electric sunroof, glass version |
|
| The headliner (7) is hung on the sliding roof frame or panoramic sliding roof frame. |
|||
| 24 | Lower the headliner (7) and remove it toward the rear from the vehicle. | Carefully handle headliner (7), do not kink and lay down on clean base. Otherwise this could lead to damage and soiling. |
|
| 25 | Prepare new roof lining (7) using old roof lining (7) as template. | When replacing roof lining (7). |
|
| 26 | Check dampings on the roof lining (7) for correct seating and condition. | Model 167.1/9 with code 460 (Canada version) Model 167.1/9 with code 494 (US version) If the headliner (7) is reused. If the insulation is not seated correctly or is damaged, replace or fasten the insulation. |
|
| 27 | Install in the reverse order. |
