Remove Install Crankshaft Pulse Ring - AR15.12-P-0001MRI
Engine 264 in model 205, 253
| Remove/install | |||

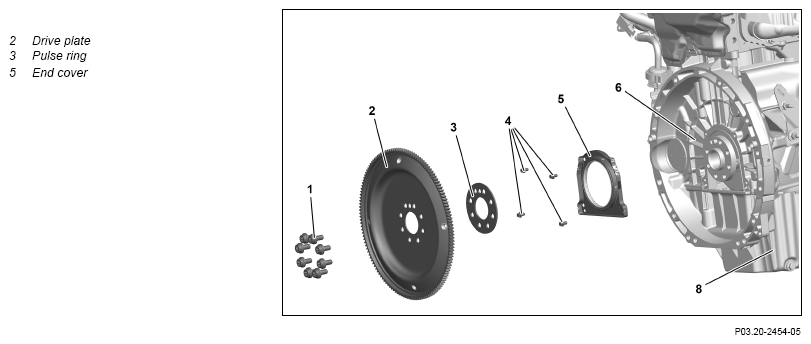

| 1 | Remove drive plate (2). | AR03.30-P-8003MRI | |
| 2 | Remove crankshaft Hall sensor. | AR15.12-P-2136MRI | |
| 3 | Remove pulse ring (3). | The pulse ring (3) will otherwise be damaged. |
|
| Check | |||
| 4 | Check the rubber lining of the pulse ring (3) for damage. | If damage is present on the rubber lining, ↓ Replace pulse ring (3). |
|
| 5 | Check end cover (5) and radial shaft sealing ring for damage. | If leakage occurs on the end cover (5) or radial shaft sealing ring, ↓ Replace end cover (5) with radial shaft sealing ring. |
AR03.20-P-3003MRI |
| Clean | |||
| 6 | Clean contact surfaces of pulse ring (3) and clean crankshaft flange. | The surfaces will be destroyed and the pulse ring (3) and crankshaft will be unusable. Assembly cleaner |
*BR00.45-Z-1028-04A |
| 7 | Install in the reverse order. | ||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Conduct Engine test run while checking for proper operation of the Engine. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
