Replace Rear Crankshaft Radial Sealing Ring - AR03.20-P-3003MRI

Engine 264 in model 205, 253

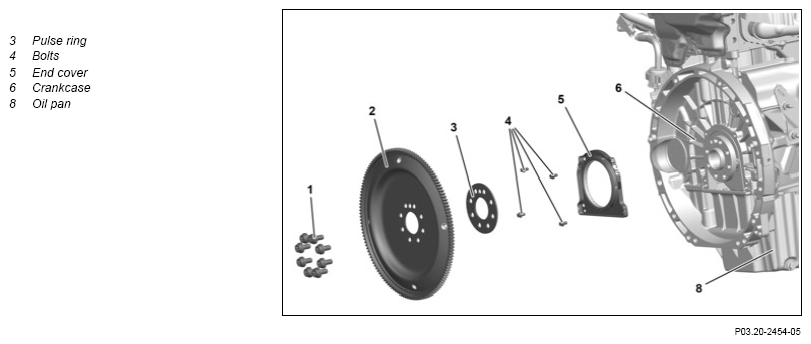

Fig 1: Rear Crankshaft Radial Sealing Ring/End Cover Components Location - Engine 264 In Model 253

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove pulse ring (3).		AR15.12-P-0001MRI
2	Clean crankcase (6) and oil pan (8) in area of end cover (5).	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove screws (4).
4	Position tool on the side cutouts of the end cover (5) and release the end cover (5) from the crankcase (6).
	Notes on application of flange sealants to seal major assemblies		AH00.00-P-0500-01MNE
	000 588 00 84 00 Heat gun	Do not damage the sealing surface between the end cover (5) and the crankcase (6). Otherwise, leakage may occur. Heat end cover (5) in area of the sealing surfaces if necessary using a heat gun.	WS54.00-P-0049B
5	Remove end cover (5).	The end cover (5) and radial shaft sealing ring form a unit and cannot be separated.
	Install
6	Install new end cover (5).		AR03.20-P-3003-01MRH
	Notes on application of flange sealants to seal major assemblies		AH00.00-P-0500-01MNE
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Loctite 7200	*BR00.45-Z-1038-04A
		Screw/bolt, rear end cover to crankcase	*BA01.40-P-1002-03A
		Installation tool	Fig 2
7	Install pulse ring (3).		AR15.12-P-0001MRI
8	Check engine oil level and correct if necessary.
			AP18.00-P-1812MKI

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 264
BA01.40-P-1002-03A	Screw/bolt, rear end cover to crankcase	Nm	8

Fig 2: Identifying Installation Tool (271 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
BR00.45-Z-1038-04A	Loctite 7200	A 010 989 90 71
