Remove/Install Drive Plate - AR03.30-P-8003MRI
Engine 264 in model 205, 253
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove | |||
| 1 | Remove transmission. | Engine 264 in model 205, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500MRI |
| Engine 264 in model 205, 253 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500MRF | ||
| 2 | Install retaining lock for crankshaft. | AR03.30-P-5001MRI | |

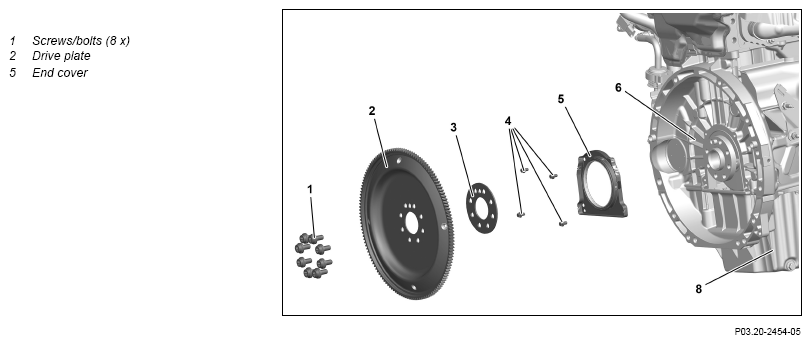

| 3 | Remove bolts (1). | Do not use an impact wrench or pneumatic tool to remove the screw/bolts (1). Otherwise, threads are damaged. |
|
| 4 | Remove drive plate (2). | ||
| Install | |||
| 5 | Check end cover (5) and radial shaft sealing ring for damage. | If damage is present, ↓ Replace end cover (5) with radial shaft sealing ring. |
AR03.20-P-3003MRI |
| 6 | Position drive plate (2) on crankshaft flange. | ||
| 7 | Screw in new screws (1) and tighten evenly in a crosswise pattern. | Do not use an impact wrench/driver or pneumatic tool to screw in the screws (1). Otherwise, threads are damaged. |
*BA03.30-P-1002-01Y |
| 8 | Remove retaining lock for crankshaft. | AR03.30-P-5001MRI | |
| 9 | Install transmission. | Engine 264 in model 205, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500MRI |
| Engine 264 in model 205, 253 with transmission 725.0 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0500MRF |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01Y | Bolt, two-mass flywheel/drive plate to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
