Remove/Install Retaining Lock For Crankshaft/Ring Gear - AR03.30-P-5001MRI
Engine 264 in model 205, 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining. | AR61.20-P-1105LW | |
| 2.1 | Remove the starter opening cover on the crankcase. | Engine 264 in model 205, 253 with code B01 (48V technology) |
*BA15.30-P-1001-01U |
| 2.2 | Remove starter (M1). | Engine 264 in model 205, 253 except code B01 (48V technology) |
AR15.30-P-7100MRI |

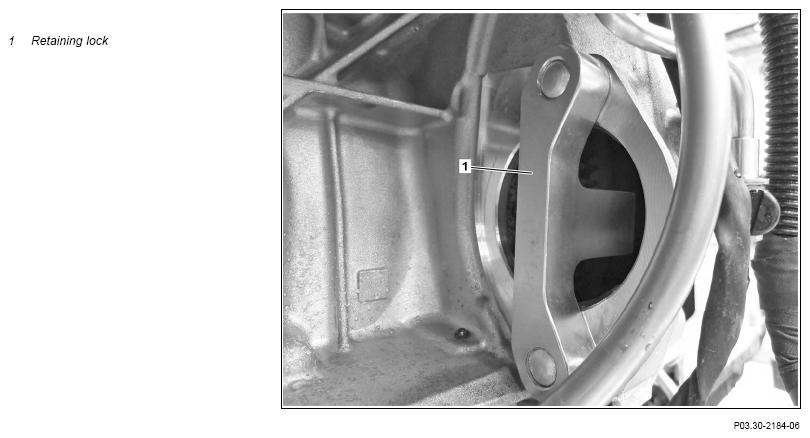

| 3 | Insert retaining lock (1) into starter opening until it engages with starter ring gear. | Fig 1 | |
If retaining lock (1) cannot be inserted, ↓ Remove the charge air cooler while its lines remain connected, place it at the front and crank the engine using the center bolt of the crankcase. |
Fig 2 | ||
| AR09.41-P-6817MRI | |||
| 4 | Install in the reverse order. |
STARTER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA15.30-P-1001-01U | Bolt, starter/cover for starter opening to crankcase | Nm | 39 |
