Remove/Install Radiator - AR20.20-P-3865RF
Model 253 with engine 264, 274.9, 276.8, 642, 651

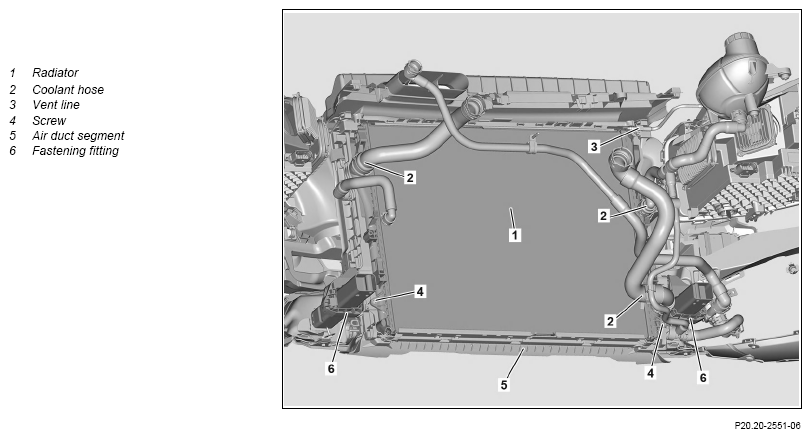

Shown on engine 651
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove fan unit | Model 253 with engine 264 | AR20.40-P-5050MRP |
| Model 253 with engine 274.9, 276.8, 642, 651 |
AR20.40-P-5050RF | ||
| 2 | Drain coolant at cooler (1) | Model 253 with engine 264 | AR20.00-P-1142MRI |
| Model 253 with engine 274.9, 276.8, 651 | AR20.00-P-1142LW | ||
| Model 253 with engine 642 | AR20.00-P-1142OGY | ||
| 3 | Detach vent line (3) on radiator (1) | AR20.20-P-7441-01RQ | |
| 4 | Detach coolant hoses (2) at the radiator (1) | AR20.20-P-7441-01RQ | |
| 5 | Remove screw/bolts and remove fastening fitting (6) on soundproofing | ||
| 6 | Remove bolts (4) | ||
| 7 | Unclip air duct segment (5) on cooler (1) | ||
| 8 | Pull cooler (1) to the rear, pull out upwards and remove downwards | ||
| 9 | Install in the reverse order | ||
| 10 | Check engine Cooling system for leaktightness | AR20.00-P-1010LW |
