Remove/Install Fan Unit - AR20.40-P-5050RF
Engine 274.9, 276.8, 642, 651 in model 253
Shown on model 253 with engine 651
Shown on model 253.354
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key outside transmitter range (at least 2 m) | ||
| 2 | Remove front lower engine compartment paneling | Model 253 with engine 651 | AR61.20-P-1105LW |
| 3 | Unclip lower air duct segment from fan unit (4) | Model 253 with engine 651 | |
| 4 | Unclip coolant line (9) from fan unit (1) | Engine 274.9 in model 253.354/954 | |

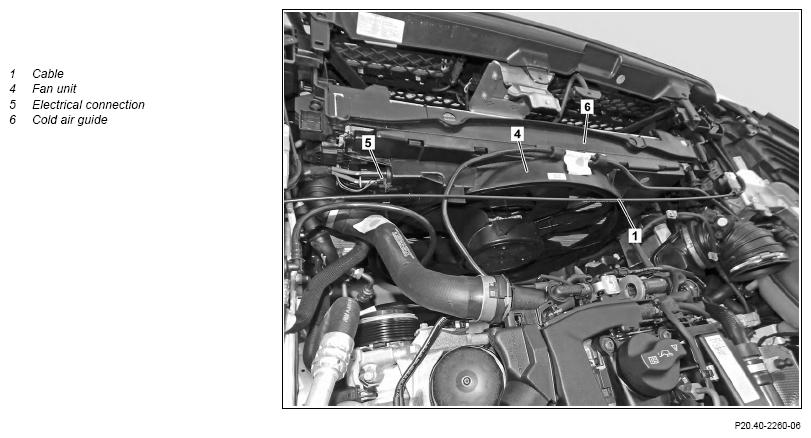

| 5 | Release and disconnect electrical connection (5) | ||
| 6 | Remove upper engine cover | ||
| 7.1 | Remove engine air intake duct upstream of air filter | Model 253 with engine 274.9, 651 | |
| 7.2 | Remove engine air intake ducts upstream of air filters | Model 253 with engine 276.8, 642 | |
| 8 | Detach the front bumper from reinforcement (3) and headlamps | AR88.20-P-2000LW | |

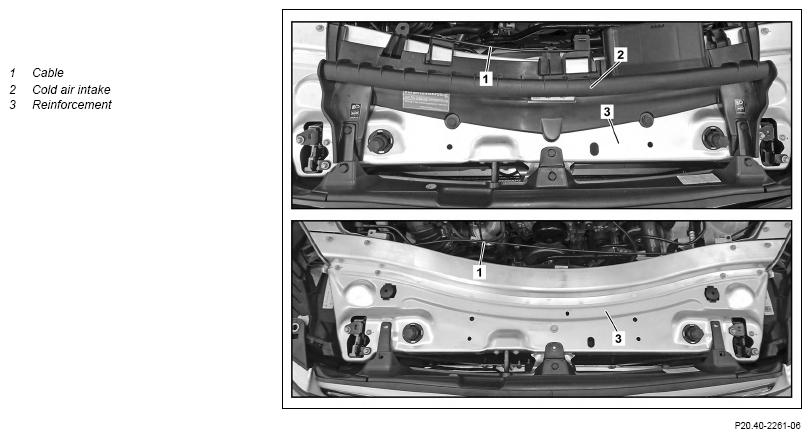

| 9 | Unclip cable (1) from cold air intake (2) | ||
| 10 | Remove retaining clip and remove cold air intake (2) from reinforcement (3) | ||
| 11 | Remove reinforcement (3) | AR62.30-P-1570LW | |
| 12 | Remove engine air intake duct downstream of air filter | Model 253 with engine 651 with code 2U1 (Radiator shutter) |
AR09.10-P-8130OLD |

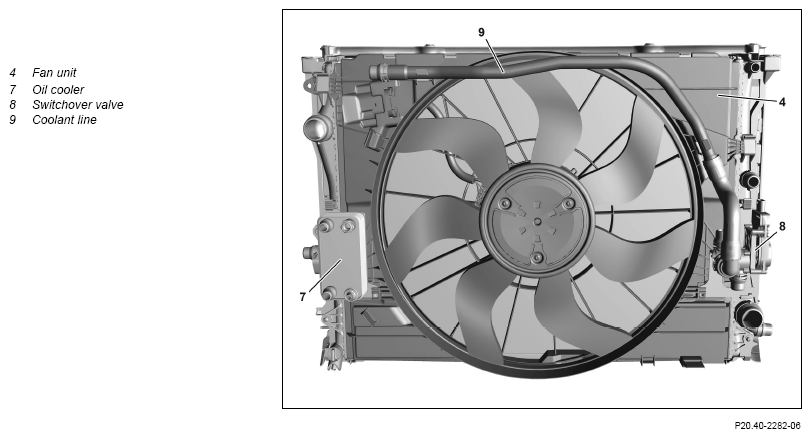

| 13 | Detach oil cooler (7) from fan unit (4) and put it to one side with connected lines | Engine 274.9 in model 253 with transmission 724.2 | AR27.55-P-1000RFH |
| Engine 274.9, 276.8, 642, 651 in model 253 with transmission 725.0 | AR27.55-P-1000LWX | ||
| 14 | Detach switchover valve (8) from fan unit (1) and put it to one side with connected lines | Engine 274.9 in model 253.354/954 | |
| 15 | Unclip cold air guide (6) from fan unit (4) and place to one side | ||
| 16 | Unclip fan unit (4) from radiator frame and pull out upwards | ||
| 17 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 18 | Perform an engine test run and check fan unit (4) for proper operation |
