Remove/Install Fan Unit - AR20.40-P-5050MRP

Engine 264 in model 253

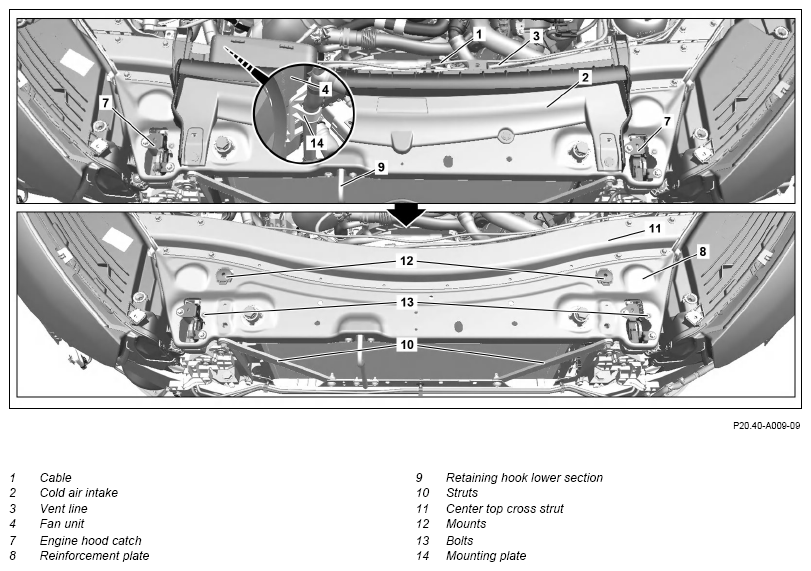

G14470840Courtesy of MERCEDES-BENZ USA
Fig 1: Coolant Fan Unit Components Location - Engine 264 In Model 253

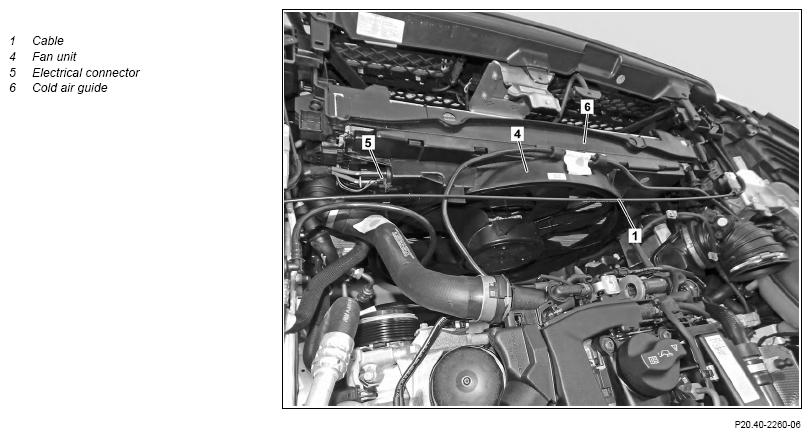

G14470841Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  due to fan starting unexpectedly Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2 Remove upper engine cover.   AR01.10-P-2405MRI
3 Remove engine air intake duct upstream of air filter.
4 Release and disconnect electrical connector (5) on fan unit (4).
5 Release front bumper until screws of struts (10) are accessible.   AR88.20-P-2000LW
6 Unclip cable (1) from cold air intake (2).
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
7 Remove bleed line (3) from cold air intake (2) and air intake line downstream of air filter, unclip from guides, place to one side, and seal openings with suitable stop plugs. Engine 264 in model 253
with code B01 (48V technology)
AR20.20-P-7441-01RQ
    SPECIAL TOOL Record plug Fig 3
8 Remove mounting plate (14) on fan unit (4). Engine 264 in model 253
with code B01 (48V technology)

9 Remove cold air intake (2). SPECIAL TOOL Dismantling tool Fig 2
10 Remove hood catches (7) from reinforcement plate (8). TORQUE SPECIFICATION Screw, hood catch lower part to reinforcement plate/front module carrier *BA62.30-P-1017-01H
11 Remove retaining hook lower section (9) from reinforcement plate (8). TORQUE SPECIFICATION Bolt, lock striker to cross member/front-module carrier *BA62.30-P-1008-01H
12 Remove struts (10) from reinforcement plate (8). TORQUE SPECIFICATION Screw, strut to reinforcement plate/front module carrier *BA62.30-P-1016-01H
13 Remove screws of center top cross strut (11) on front module carrier. TORQUE SPECIFICATION Screw, front module carrier/cross strut to body/angle bracket for front module carrier *BA62.30-P-1007-01H
14 Unscrew bolts (13).
15 Remove mounts (12) of cooler unit.
16 Lift reinforcement plate (8), guide hood catches (7) through openings, and remove reinforcement plate (8) with center top cross strut (11).
17 Unclip cold air guide (6) from fan unit (4) and place to one side.
18 Remove coolant line of low-temperature circuit from fan unit (4). Engine 264 in model 253
with code B01 (48V technology)

19 Unclip fan unit (4) from radiator frame and remove in upward direction.
20 Install in the reverse order
  Concluding tasks
21 Check gap dimensions of hood and adjust if necessary.   AR88.40-P-3020LW
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
22 Perform engine test run and check fan unit (4) for proper operation.
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1007-01H Screw, front module carrier/cross strut to body/angle bracket for front module carrier Nm 11
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1008-01H Bolt, lock striker to cross member/front-module carrier Nm 10
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1016-01H Screw, strut to reinforcement plate/front module carrier M8 Nm 23
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1017-01H Screw, hood catch lower part to reinforcement plate/front module carrier M6 Nm 11
Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
