Remove/Install Boost Pressure Control Flap Actuator - AR09.50-P-8845MFC

Engine 260 in model 118, 177, 247

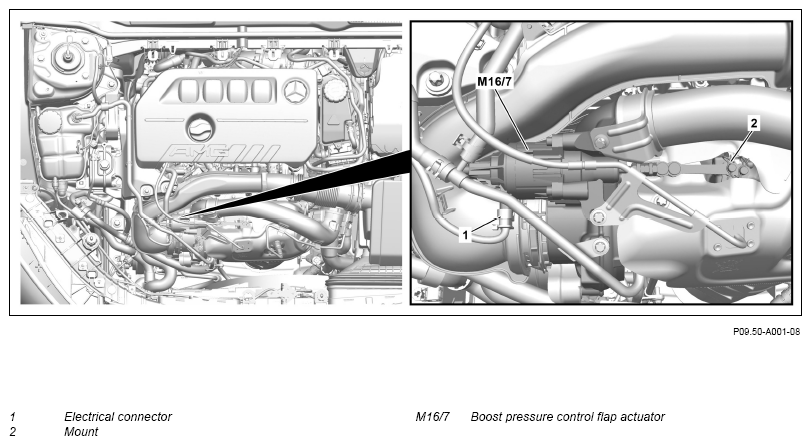

Fig 1: Boost Pressure Control Flap Actuator Components Location - Engine 260 In Model 247 (Shown With Code M016)

Courtesy of MERCEDES-BENZ USA

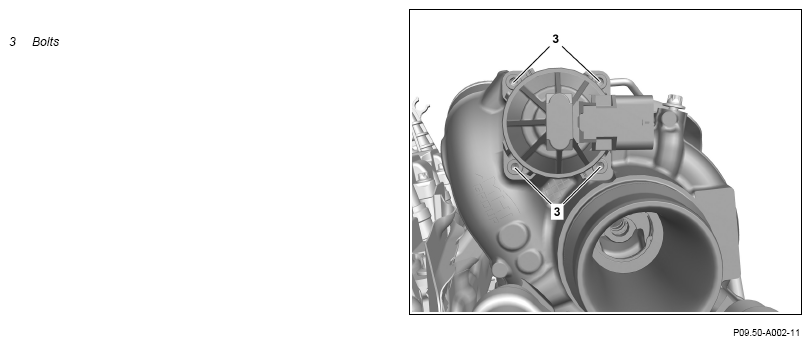

Shown on Engine with code M016 (Uprated Engine)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove Engine air intake duct downstream of air filter.		AR09.10-P-8130MFC
2	Remove upper heat shield from exhaust gas turbocharger.	Engine 260 in model 118, 177, 247 except code M016 (Uprated Engine)
			AR09.40-P-6045MFC
3	Release electrical connector (1) and disconnect.
4	Remove mount (2).	The linkage is attached either via a cotter pin or a retaining ring.
5	Remove screw/bolts (3).	Screw, boost pressure control flap actuator to exhaust gas turbocharger	*BA09.40-P-1011-02G
6	Remove boost pressure control flap actuator (M16/7).
7	Install in the reverse order.
8	Read out and delete fault memory.
			AD00.00-P-2000-06MFA
