Remove/Install Heat Shield On Exhaust Gas Turbocharger - AR09.40-P-6045MFC

Engine 260 in model 118, 177, 247

Courtesy of MERCEDES-BENZ USA

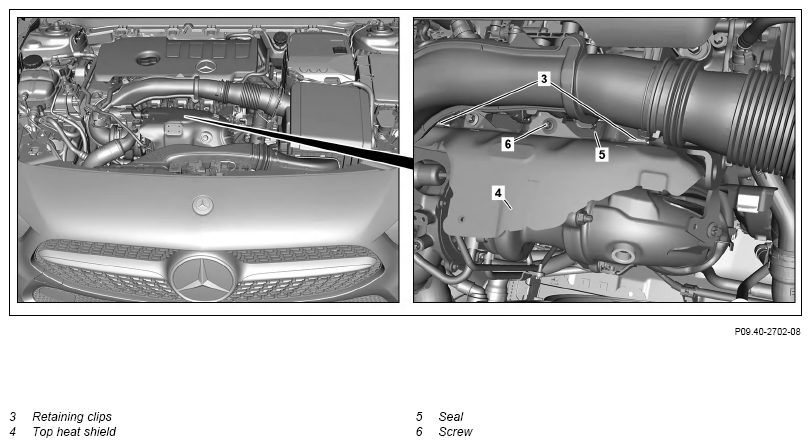

Shown on model 177 with Engine 260 without code M016 (performance-enhanced Engine)

Courtesy of MERCEDES-BENZ USA

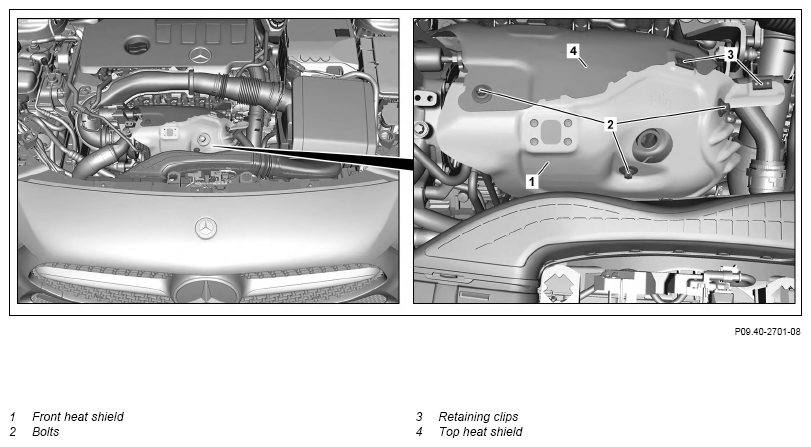

Shown on model 177 with Engine 260 without code M016 (performance-enhanced Engine)

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove oxygen sensor upstream of catalytic converter.		AR07.04-P-0086MFC
2	Remove the inerting system line in the Engine compartment and place to one side.	Engine 260 in model 118, 177, 247 with code 2U8 (Alternative refrigerant)	AR86.10-P-0119MFC
3	Remove charge air pipe downstream of exhaust gas turbocharger.	Engine 260 in model 118, 177, 247 with code M016 (Uprated Engine)
			AR09.41-P-1333MFC
4	Remove Engine air intake duct downstream of air filter.	Engine 260 in model 118, 177, 247 with code M016 (Uprated Engine)
			AR09.10-P-8130MFC
5	Remove screws (2).	Bolt, heat shield to cylinder head/holder/support	*BA09.40-P-1008-02G
6	Remove the front heat shield (1) from the retaining clips (3).
7	Remove screw (6).	Bolt, heat shield to cylinder head/holder/ support	*BA09.40-P-1008-02G
8	Remove the upper heat shield (4) from the retaining clips (3).	Ensure seal (5) is correctly seated in retaining clips (3).
9	Install in the reverse order.
