Connect/Disconnect Diagnostic Unit - AD00.00-P-2000-06MFA

Model 118, 177, 243, 247

Courtesy of MERCEDES-BENZ USA

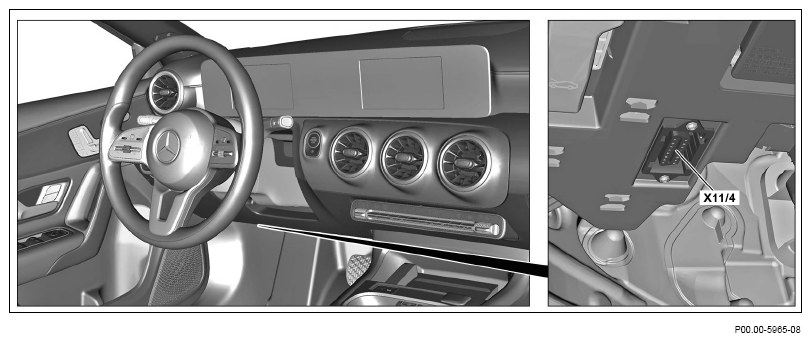

1. Connect diagnostic device to diagnostics connection (X11/4) in driver's footwell.

   Even after disconnecting the starter battery (G1), the vehicle is still powered by the diagnostic device. When working on a de-energized vehicle, the diagnostic device must be disconnected from the vehicle.

2. Start XENTRY.
3. In the menu, select the model series via the following path: "Selection → Brand → Product group → Vehicle".

   The work procedures are menu-assisted.

4. Disconnect diagnostic unit.
