Check All Visible Parts Of Vehicle Underside For Damage And Fluid Loss - AP00.20-P-0054N
Model 118, 177, 247

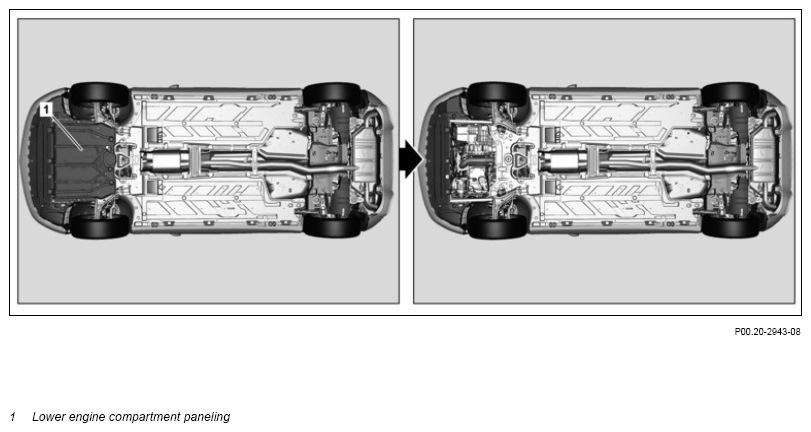

Shown on model 177.045

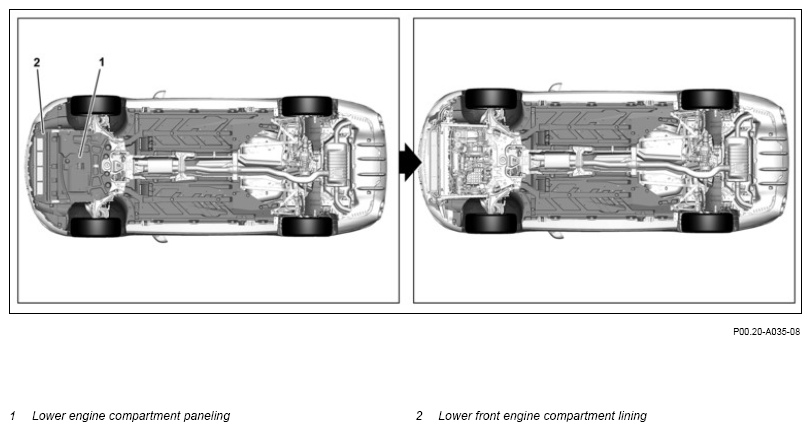

Shown on model 177.053
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | ||
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Preparatory tasks | |||
| 1 | Lift vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||
| Check | |||
| 2 | Check underfloor paneling for damage from driving over obstacles or from bottoming damage. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If it is suspected that there is damage from driving over obstacles or bottoming, ↓ Check front axle steering for mechanical damage. If the front axle steering is mechanically damaged, ↓ replace front axle steering for safety reasons. |
|
| Remove | |||
| 3 | Remove lower engine compartment lining (1). | ||
| Model 118, 177, 247 with engine 260 except code M016 (Uprated engine) | AR61.20-P-1105MFA | ||
| Model 118, 177, 247 with engine 282 | |||
| Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) | AR61.20-P-1105MFR | ||
| Model 118, 177, 247.7 with engine 139 | |||
| Model 118, 177, 247 with engine 608 | AR61.20-P-1105MFE | ||
| Model 247 with engine 654 | |||
| 4 | Remove lower front engine compartment lininc (2). | Model 118, 177, 247 with engine 139 | |
| Check | |||
| 5 | Check visible systems, component parts, lines and hoses of the drive train on the underfloor for damage, correct routing, fluid loss, correct mounting and corrosion. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Spring elements, Shock absorber, Suspension lines and sensors, Steering, Front axle, Front axle shafts with boots, Engine and mounted major assemblies, Cooling system, Heater and A/C system, Exhaust system, Exhaust aftertreatment, Actuator motors of exhaust gas flaps, Heat shields, Rear axle, Fuel system. If problems are determined, ↓ rectify the problems. |
|
| 6 | Check visible systems, component parts, lines and hoses on the underfloor for damage, correct routing, fluid loss, correct mounting and corrosion. | Equipment-dependent. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 |
|
Hybrid components, Inerting system, Stationary heater, Manual transmission, Clutch operation, Automatic transmission, Transfer case (4MATIC), Rear axle differential (4MATIC), Rear axle shafts with boots (4MATIC). If problems are determined, ↓ rectify the problems. |
|||
| 7 | Check underfloor and visible component parts on underfloor for damage, routing, mounting and corrosion. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 8 | Check visible body panels for corrosion and deformation. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Front axle carrier, Rear axle carrier, Chassis steering arms, Underfloor body panels, Body reinforcements. If problems are determined, ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. |
|
| Install | |||
| 9 | Install lower front engine compartment lining (2). | Model 118, 177, 247 with engine 139 | |
| 10 | Install engine compartment lining at bottom (1). | ||
| Model 118, 177, 247 with engine 260 except code M016 (Uprated engine) | AR61.20-P-1105MFA | ||
| Model 118, 177, 247 with engine 282 | |||
| Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) | AR61.20-P-1105MFR | ||
| Model 118, 177, 247.7 with engine 139 | |||
| Model 118, 177, 247 with engine 608 | AR61.20-P-1105MFE | ||
| Model 247 with engine 654 |
