Remove/Install Lower Engine Compartment Lining - AR61.20-P-1105MFR

Model 118, 177, 247 with engine 260

with code M016 (Uprated engine)

Model 118, 177, 247.7 with engine 139

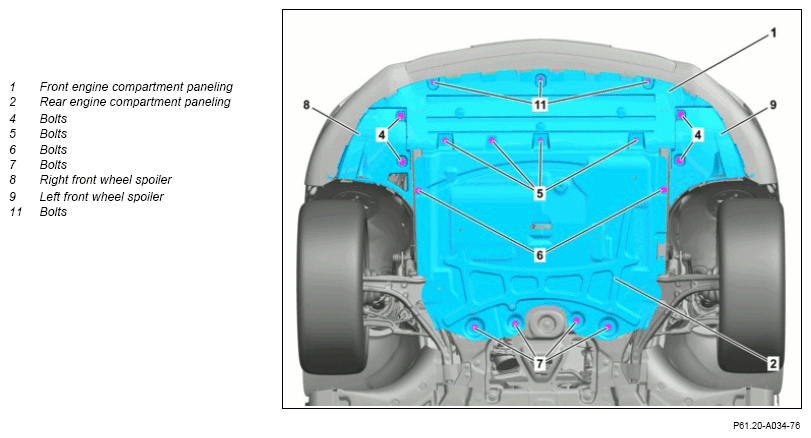

Shown on model 177 with engine 260 with code M016 (performance-enhanced engine)

Fig 1: Lower Engine Compartment Lining Component Locations (Model 247 W/ Eng 260) (Shown On Model 177 W/ Eng 260 W/ Code M016)

Courtesy of MERCEDES-BENZ USA

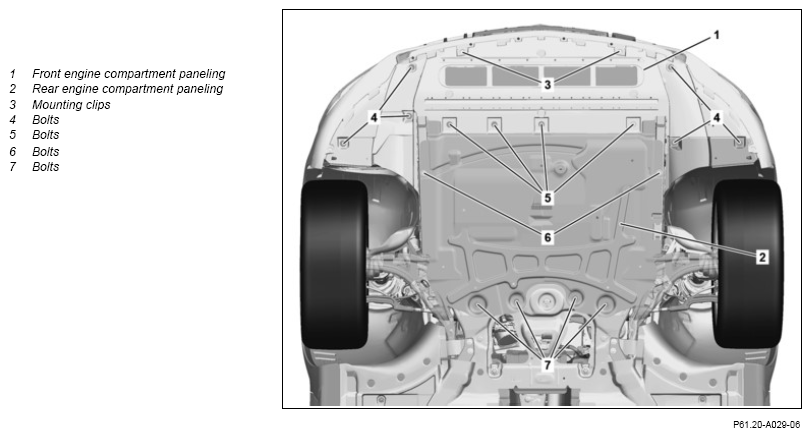

Shown on model 177 with engine 139

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Preparatory tasks
1	Open hood.	Vehicles with remote start function.
2	Lift vehicle with lifting platform.		AR00.60-P-1006A
	Remove front engine compartment paneling (1)
3	Remove bolts (4).	Number of bolts (4) varies depending on the vehicle equipment.
4	Release right front wheel spoiler (8) and left front wheel spoiler (9) from left and right front wheel arch liner and remove.	Model 118, 177, 247 with engine 260 with code M016 (Uprated engine)
5.1	Remove retaining clips (3).	Model 118, 177, 247.7 with engine 139 Dismantling tool	Fig 2
5.2	Remove screws (11).	Model 118, 177, 247 with engine 260 with code M016 (Uprated engine)
6	Remove screws (5).	Bolt, mounting rail in lower engine compartment lining (front) to frame	*BA61.20-P-1001-01B
7	Pull front engine compartment lining (1) out of front bumper and remove.
8	Install in the reverse order.
	Remove rear engine compartment paneling (2)
9	Remove screws (6).	Bolt, mounting rail in lower engine compartment lining (front) to frame	*BA61.20-P-1001-01B
10	Remove screws (5).	Bolt, mounting rail in lower engine compartment lining (front) to frame	*BA61.20-P-1001-01B
11	Remove screws (7).	Bolt, mounting rail in lower engine compartment lining (front) to frame	*BA61.20-P-1001-01B
12	Remove rear engine compartment lining (2).
13	Install in the reverse order.
	Concluding tasks
14	Lower vehicle with vehicle lift.		AR00.60-P-1006A
15	Close hood.	Vehicles with remote start function.

Fig 2: Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
