Remove/Install Lower Engine Compartment Lining - AR61.20-P-1105MFA

Model 118, 177, 247 with engine 260

except code M016 (Uprated engine)

Model 118, 177, 247 with engine 282

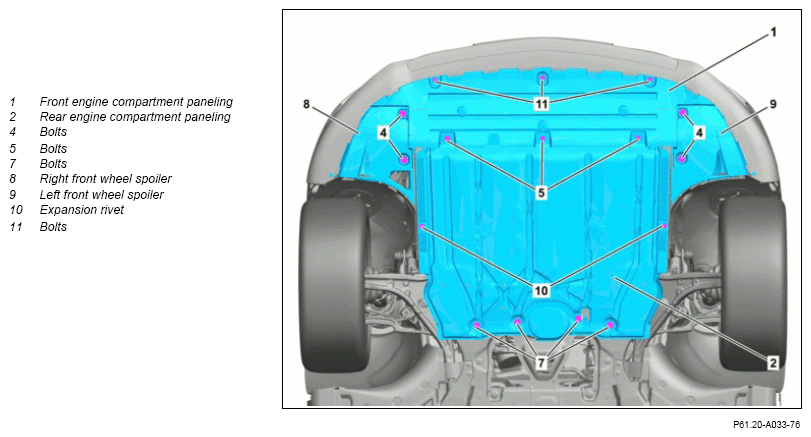

Shown on model 177 with engine 282

Fig 1: Lower Engine Compartment Lining Component Locations (Model 247 W/Engine 282) (Shown On Model 177 W/ Eng 282)

Courtesy of MERCEDES-BENZ USA

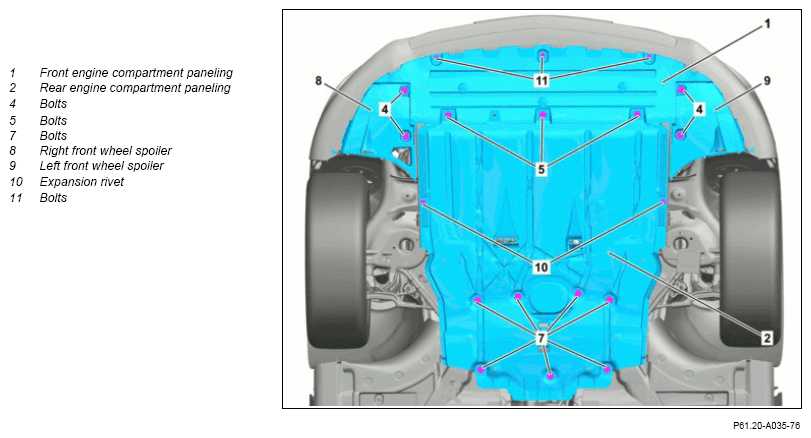

Shown on model 177 with engine 260 except code M016 (Performance-enhanced engine)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Preparatory tasks
1	Open hood.	Vehicles with remote start function.
2	Lift vehicle with lifting platform.		AR00.60-P-1006A
	Remove front engine compartment paneling (1)
3	Remove bolts (4).
4	Release right front wheel spoiler (8) and left front wheel spoiler (9) from the front left and right wheel arch liner.
5	Remove screws (11).
6	Remove screws (5).
7	Pull front engine compartment lining (1) out of front bumper and remove.
8	Install in the reverse order.
	Remove rear engine compartment paneling (2)
9	Remove expansion rivets (10).	Dismantling tool	Fig 2
10	Remove screws (5).
11	Remove screws (7).	Number of bolts (7) varies depending on the vehicle equipment.
12	Remove rear engine compartment lining (2).
13	Install in the reverse order.
	Concluding tasks
14	Lower vehicle with vehicle lift.		AR00.60-P-1006A
15	Close hood.	Vehicles with remote start function.

Fig 2: Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
