Remove/Install Lower Engine Stabilizer Mount - AR22.10-P-1155MFC

Engine 260, 282 in model 118, 177, 247

Fig 1: Lower Engine Stabilizer Mount Components Location - Engine 260 In Model 247 (Shown On Engine 282 Except Code ME08)

Courtesy of MERCEDES-BENZ USA

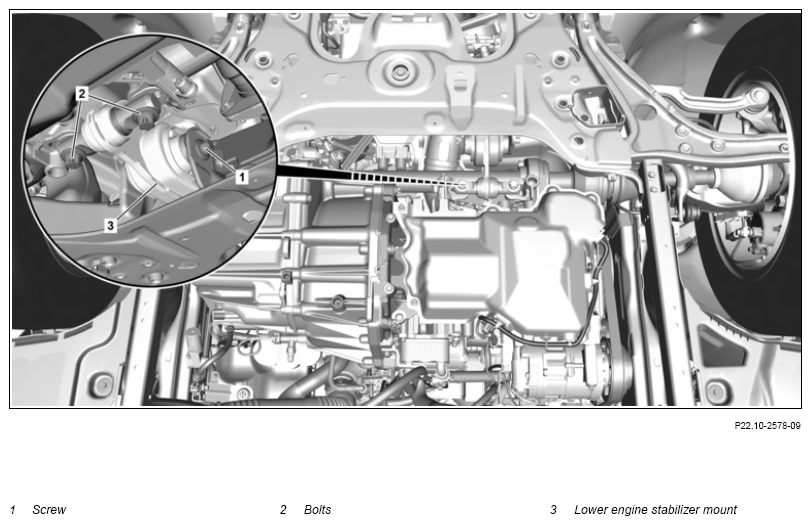

Shown on engine 282 except code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING plug-in))

Courtesy of MERCEDES-BENZ USA

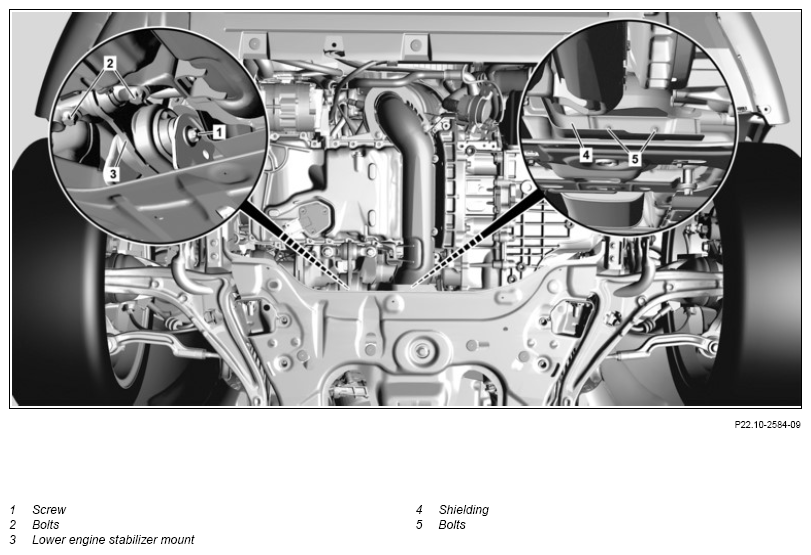

Shown on engine 260

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Engine 282 in model 118, 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AS00.00-Z-0035-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Engine 282 in model 118, 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AH00.00-Z-0300-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove voltage of high-voltage on-board electrical system.	Engine 282 in model 118, 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AR47.70-P-1000MFH
2	Remove bottom engine compartment lining.	Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 except code M016 (Uprated engine) Engine 282 in model 118, 177, 247	AR61.20-P-1105MFA
3	Unscrew screws (5) and remove shielding (4).	Engine 260 in model 118, 177, 247
4	Remove screw (1).	Screw, engine carrier engine stabilizer mount at bottom to front axle carrier	*BA22.10-P-1008-03P
5	Remove screws (2) and remove bottom engine stabilizer mount (3).	Screw, lower engine stabilizer mount to engine carrier/electric drive	*BA22.10-P-1009-03P
6	Check elastomer bearings of the bottom engine stabilizer mount (3) for damage and wear.	If damage or wear can be detected, ↓ Replace lower engine stabilizer mount (3).
7	Install in the reverse order.
