Remove/Check/Install Rear Axle Brake Pads - AR42.10-P-1710MFA

Model 118, 177, 243, 247

MODIFICATION NOTES

20.10.202 Document completely revised.

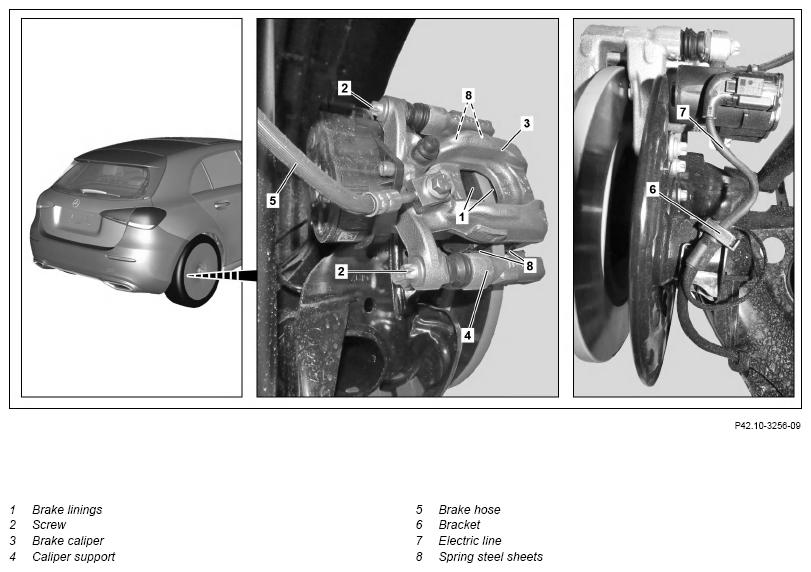

Fig 1: Rear Axle Brake Pads Components Location - Model 247 (Shown On Model 177.0)
G14689023Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

G14689024Courtesy of MERCEDES-BENZ USA
G14689025Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on repairs to brake system   AH42.00-P-0003-01A
Notice  Brake fluid notes   AH42.50-P-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Move brakepads (1) of rear axle into assembly position.   AR42.10-P-1710-02MFA
    NOTES Do not depress the service brake during "Move to assembly position". Otherwise, the spindle in the brake caliper (3) can be damaged.
2 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3 Remove cover above brake fluid expansion reservoir.
4 Clean area around cap on brake fluid expansion reservoir. Assembly cleaner *BR00.45-Z-1028-04A
5 Unscrew cap on brake fluid expansion reservoir and extract some brake fluid. IMPORTANT This prevents the expansion reservoir overflowing when the brake piston is pushed back.
6 Remove rear wheel and tire assemblies.   AR40.10-P-1102MFA
7 Unclip electric line (7) from holder (6).
8 Remove bolts (2)
9 Remove brake caliper (3) from brake caliper support (4) and fasten brake caliper (3) to vehicle in unstressed condition to relieve brake hose (5) and electric line (7). NOTES Do not subject the brake hose (5) and electric line (7) to tension and do not crush or kink them.
Otherwise the brake hose (5) and electric line (7) will be damaged.
IMPORTANT Do not disconnect electrical connector from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2).
IMPORTANT Do not remove brake hose (5).
10 Remove brakepads (1) from brake caliper support (4).
11 Remove spring steel sheets (8) from brake caliper support (4).
  Check
12 Check brakepads (1) for wear and condition.
REFER TO MAINTENANCE   Model 243 AP42.10-P-4252K
REFER TO MAINTENANCE   Model 247 AP42.10-P-4252MFB
REFER TO MAINTENANCE   Model 177 AP42.10-P-4252MFA
REFER TO MAINTENANCE   Model 118
If there is a problem,
↓
Replace brake linings (1) in sets.		 AP42.10-P-4252CLA
13 Check brake disks for wear and condition.
REFER TO MAINTENANCE   Model 243 AP42.10-P-4256C
REFER TO MAINTENANCE   Model 118, 177, 247
IMPORTANT Only install brake disks approved by
Mercedes-Benz.
If there is a problem,
↓
Replace brake disks in sets.		 AP42.10-P-4256EW
      AR42.10-P-0220MFA
14 Check brake caliper (3) with detachable parts for damage. If there is a problem,
Replace corresponding components.
      AR42.10-P-0080MFA
15 Check brake caliper support (4) and sliding bolts for damage and ease of movement. If there is a problem,
Replace corresponding components.
      AR42.10-P-0080MFA
CLEAN Clean
16 Clean contact surfaces of brakepads (1) on brake caliper (3) and on brake caliper support (4). NOTES Do not use sharp-edged or pointed objects.
Otherwise, the dust boot (13), the brake caliper (3) or the brake caliper support (4) may be damaged.
IMPORTANT Remove adhesive residue on contact surfaces of brake caliper (3) completely.
    Assembly cleaner *BR00.45-Z-1028-04A
INSTALLING Install
17 Press back brake piston using pusher tool (01). If brake caliper (3) is reused.
    SPECIAL TOOL Resetting device If the brake piston is sluggish.
↓
Replace brake caliper (3).		 Fig 2
      AR42.10-P-0080MFA

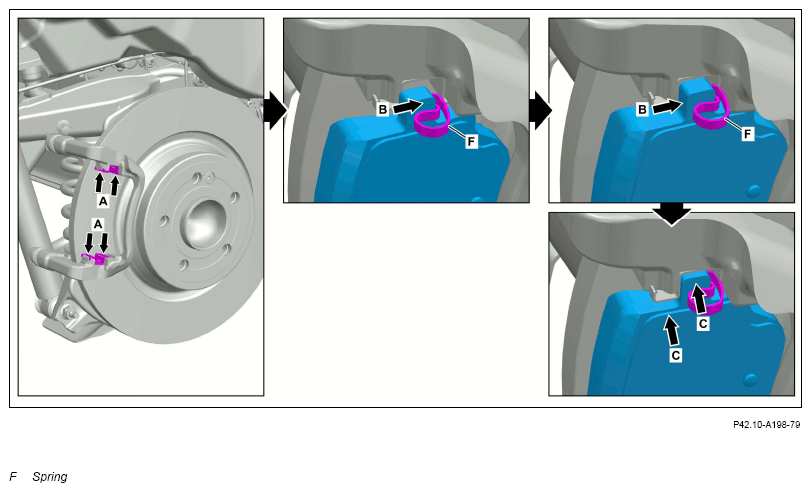

18 Push spring steel sheets (8) centrally onto upper and lower surfaces into slot of brake caliper support (4) (arrows A). If the spring steel sheets (8) are damaged.
↓
Replace spring steel sheets (8) in sets.
19 Fit springs (F) onto brake linings (1). If springs (F) are damaged:
↓
Replace springs (F) in sets.
20 Install brakepads (1). IMPORTANT Install only sets of brake pads (1) approved by Mercedes-Benz.
IMPORTANT Do not apply any lubricants to brakepads (1).
    IMPORTANT Press brakepads (1) in direction of arrow (B). Press springs (F) together until brake linings (1) fit into guides of spring steel sheets (8). By pressing in direction of arrow (C), position brakepads (1) entirely on brake disk.
21 Install brake caliper (3).
22 Tighten screws (2). TORQUE SPECIFICATION Bolt, guide pin to brake caliper *BA42.10-P-1002-12X
23 Clip electric line (7) into holder (6).
24 Mount rear wheel and tire assemblies.   AR40.10-P-1102MFA
  Concluding tasks
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
25 Operate brake pedal several times until the brakepads (1) make contact with the brake disks. IMPORTANT Firm resistance should be noticeable at the brake pedal.
26 Check fluid level in brake fluid expansion reservoir and correct if necessary.
REFER TO MAINTENANCE   Model 243 AP42.10-P-4210I
REFER TO MAINTENANCE   Model 118, 177, 247 AP42.10-P-4210D
27 Install cover above brake fluid expansion reservoir.
DANGER Risk of death caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand. AS42.00-Z-0001-01A
28 Perform brake test on test stand.
REFER TO MAINTENANCE   Model 243 AP42.00-P-4290EQ
REFER TO MAINTENANCE   Model 118, 177, 247 AP42.00-P-4290BA
REAR AXLE BRAKE CALIPER

Number Designation Model 118 with code U54 (Compound-link axle) Model 118 with code U55 (Multi-link axle)
BA42.10-P-1002-12X Bolt, guide pin to brake caliper M8 Nm 30 30
REAR AXLE BRAKE CALIPER

Number Designation Model 177 with code U54 (Compound-link axle) Model 177 with code U55 (Multi-link axle)
BA42.10-P-1002-12X Bolt, guide pin to brake caliper M8 Nm 30 30
REAR AXLE BRAKE CALIPER

Number Designation Model 243 Model 247 with code U54 (Compound-link axle)
BA42.10-P-1002-12X Bolt, guide pin to brake caliper M8 Nm 30 30
REAR AXLE BRAKE CALIPER

Number Designation Model 247 with code U55 (Multi-link axle)
BA42.10-P-1002-12X Bolt, guide pin to brake caliper M8 Nm 30

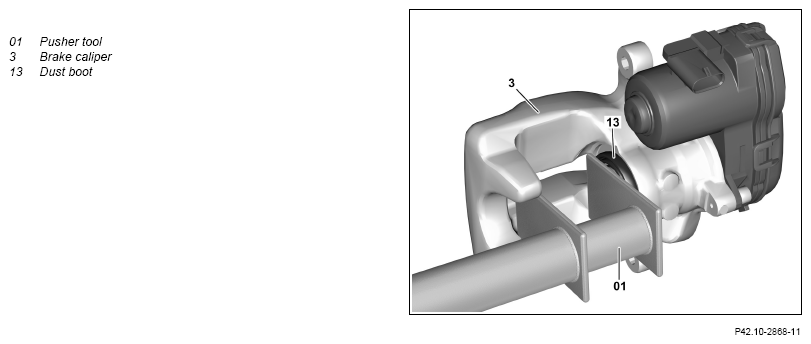

Fig 2: Identifying Resetting Device (000 589 52 43 00)
G10238876Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
