Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600XGC
Transmission 725.0 in model 463 with engine 177
as of model year 2019

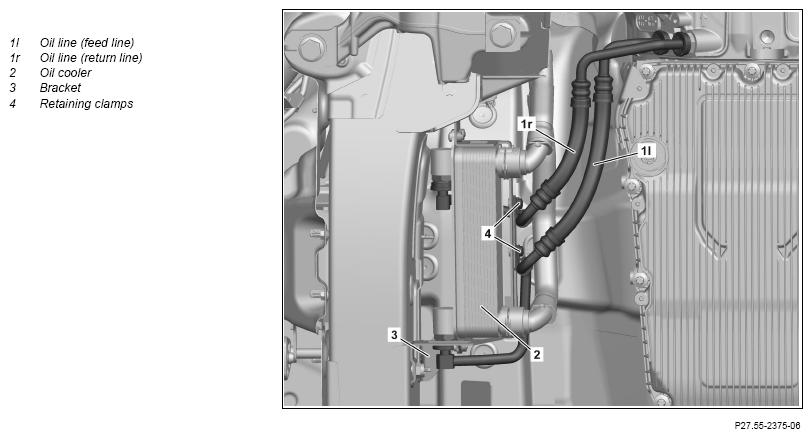

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Transmission 725.0 In Model 463 With Engine 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove oil cooler (2) with holder (3) and place to one side with attached lines. | AR27.55-P-1000XGC | |
| 2 | Remove retaining clamps (4). | *BA00.10-P-1002-04A | |
| 3 | Remove oil lines (1l, 1r) from automatic transmission and seal openings using suitable stop plugs or protective covers. | AR27.10-P-0501-03GW | |
| Fig 2 | |||
| Fig 3 | |||
| 4 | Remove oil lines (1l, 1r) from oil cooler (2) and seal openings using suitable stop plugs or protective covers. | AR27.10-P-0501-03GW | |
| Fig 2 | |||
| Fig 3 | |||
| 5 | Remove oil lines (1l, 1r) downwards. | ||
| 6 | Check seals in oil cooler (2) and in threaded fittings in automatic transmission for damage. | If problems exist, ↓ |
|
| replace threaded fitting in automatic transmission or oil cooler (2). Remove/install automatic transmission fluid cooler |
AR27.55-P-1000XGC | ||
| *BA27.10-P-1007-04H | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check and correct oil level in automatic transmission. | AR27.00-P-0270EWN | |
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, then check oil cooler (2) and oil lines (1l, 1r) for proper operation and leak tightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
