Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000XGC
Transmission 725.0 in model 463 with engine 177
as of model year 2019

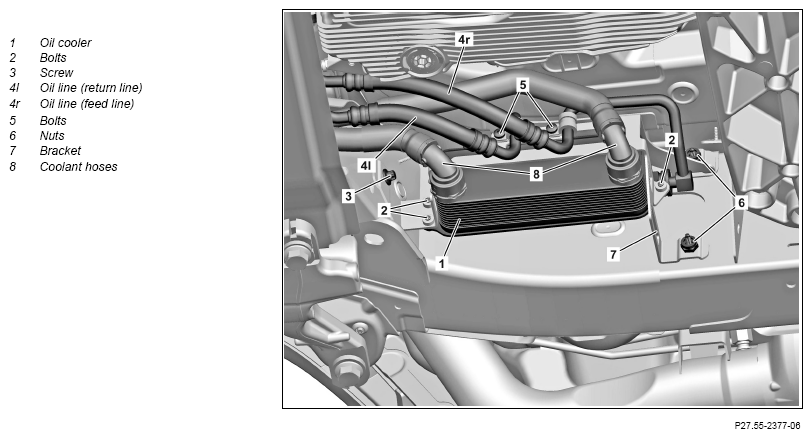

Fig 1: Automatic Transmission Fluid Cooler Components Location - Transmission 725.0 In Model 463 With Engine 177
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Lift vehicle with lifting platform. | AR00.60-P-1006A | |
| 2 | Clamp off coolant hoses (8) on oil cooler (1) using clamps. | Fig 4 | |
| 3 | Remove coolant hoses (8) from oil cooler (1) and seal openings using suitable stop plugs or protective covers. | AR09.41-P-1311-01AL | |
| Fig 2 | |||
| Fig 3 | |||
| 4 | Remove screws (5). | *BA00.10-P-1002-04A | |
| 5 | Unscrew nuts (6). | *BA00.10-P-1002-04A | |
| 6 | Remove screw (3). | *BA00.10-P-1002-04A | |
| 7 | Remove oil lines (4l, 4r) from oil cooler (1) and seal openings using suitable stop plugs or protective covers. | AR27.10-P-0501-03GW | |
| Fig 5 | |||
| Fig 3 | |||
| 8 | Remove oil cooler (1) with holder (7) downwards. | ||
| 9 | Check seals in oil cooler (1) for damage. | If damage is found, ↓ replace the oil cooler (1). |
|
| 10 | Unscrew bolts (2) and remove holder (7) from oil cooler (1). | When replacing oil cooler (1). | |
| *BA00.10-P-1002-04A | |||
| 11 | Install in the reverse order. | ||
| Check | |||
| 12 | Check and correct oil level in automatic transmission. | AR27.00-P-0270EWN | |
| 13 | Check low temperature cooling system for leak tightness. | AR09.41-P-1011XGA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Perform engine test run and check oil cooler (1) and oil lines (4l, 4r) for proper operation and leak tightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
