Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000XGA
Transmission 725.0 in model 463 with engine 176
as of model year 2019
Transmission 725.0 in model 463 with engine 264
as of model year 2019
Example illustration

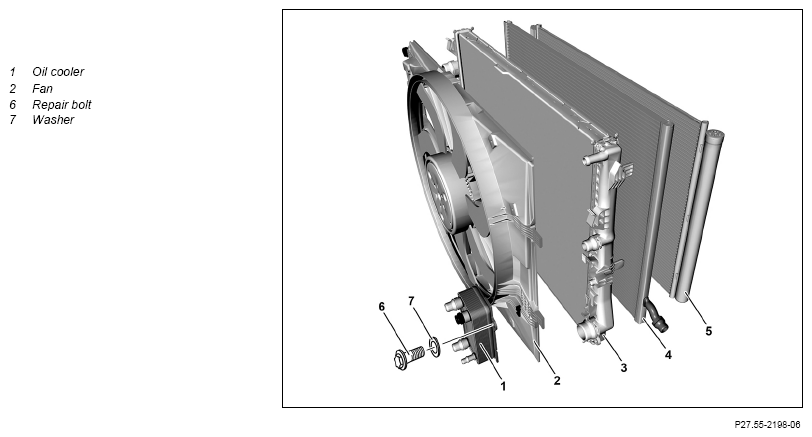

Fig 1: Automatic Transmission Fluid Cooler Components Location - Transmission 725.0 In Model 463 With Engine 176
Example illustration
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove front lower engine compartment paneling. | AR61.20-P-1105XG | |

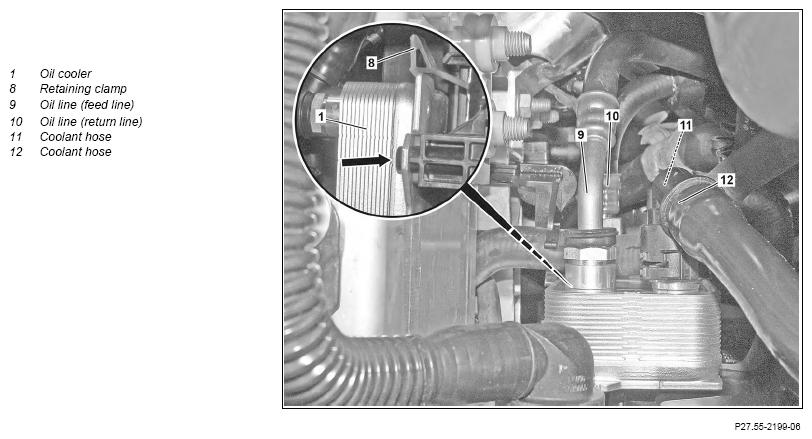

| 2 | Remove oil lines (9, 10) from oil cooler (1). | Otherwise damage will occur. |
AR27.10-P-0501-03GW |
| Fig 4 | |||
| 3 | Seal openings in oil cooler (1) using suitable stop plugs. | Fig 4 | |
| 4 | Close off coolant hoses (11, 12) using clamp. | Fig 3 | |
| 5 | Remove coolant hoses (11, 12) from oil cooler (1). | AR20.20-P-7441-01RQ | |
| 6 | Seal off coolant hoses (11, 12) using protective covers. | Fig 2 | |
| 7 | Push retaining clip (8) upwards and remove oil cooler (1). | Otherwise the retaining clip (8) will be damaged. If the retaining clip (8) is damaged, ↓ secure oil cooler (1) at position marked by arrow using repair bolt (6) and washer (7). |
|
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check and correct oil level in automatic transmission. | AR27.00-P-0270EWN | |
| 10 | Check low-temperature circuit cooling system for leak tightness. | Transmission 725.0 in model 463 with engine 176 as of model year 2019 | AR09.41-P-1011XGA |
| Transmission 725.0 in model 463 with engine 264 as of model year 2019 | AR20.00-P-1011MRO | ||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform engine test run and check oil lines (9, 10) for leak tightness. Notes on evaluating leakages |
AH00.00-N-0011-01A | |
| 12 | Install front lower engine compartment lining. | AR61.20-P-1105XG |
