Determine Caster Value - AR40.20-P-0336AC

Model 460, 461 (except 461.339)

Model 463

up to model year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

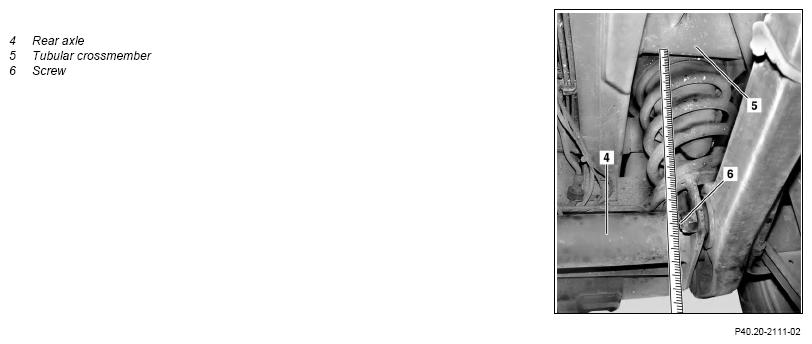

1	Measure distance between center of front screw (6) fastening trailing arm to rear axle (4) and lower edge of tubular crossmember (5)	This distance is the rear axle supplementary dimension which is required to determine the caster specified value in operation step 3. It now has the designation "a".

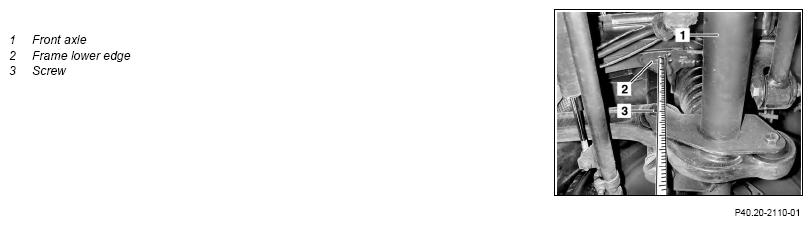

2	Measure distance between center of rear screw (3) for fastening trailing arm to front axle (1) and frame lower edge (2)	This distance is the front axle supplementary dimension which is required to determine the caster specified value in operation step 3. It now has the designation "b".
3.1	Enter supplementary dimensions determined in operation steps 1 and 2 into computer of electronic measuring system	Model 460, 461 (except 461.339) Model 463 up to model year 2019 The supplementary dimensions correspond to the level of the front and rear axle; the computer calculates the caster specified value from these values.
3.2	Determine specified caster value in nomogram	Model 460, 461 (except 461.339) Model 463 up to model year 2019 Model 460, 461 (except 461.339) Wheelbase 2400 mm Model 463 up to model year 2019 Wheelbase 2400 mm	AR40.20-P-0200-01AC
		Model 460, 461 (except 461.331/339) Wheelbase 2850 mm Model 463 up to model year 2019 Wheelbase 2850 mm	AR40.20-P-0200-01AD
		Model 460, 461 (except 461.339) Wheelbase 3120 mm Model 461 (except 461.339) Wheelbase 3400 mm Model 461.331 Wheelbase 2850 mm If there is no electronic measuring system available, the caster specified value must be determined with the help of a nomogram.	AR40.20-P-0200-01AE
