Determining Specified Caster Value With Nomogram - AR40.20-P-0200-01AC
Model 460, 461
Wheelbase 2400 mm
Model 463
up to model year 2019
Wheelbase 2400 mm
- Enter auxiliary dimension for rear axle (a) vertically into nomogram and at this point draw a line parallel to the existing lines.
- Enter supplementary dimension for front axle (b) horizontally in the nomogram and at this point draw a vertical line.
- Draw a horizontal line from the intersection point of the two lines and read off the specified caster value (c).

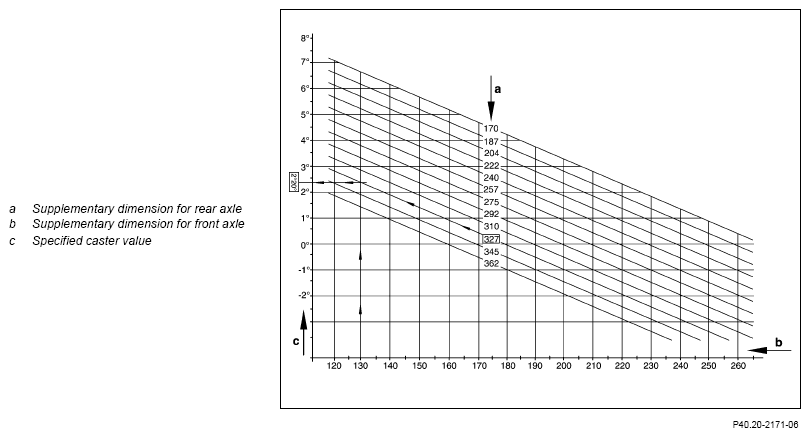

Nomogram for determining caster specified value (c) depending on the spring travel for a wheelbase of 2400 mm
