Determining Specified Caster Value With Nomogram - AR40.20-P-0200-01AD

Model 460, 461 (except 461.331)

Wheelbase 2850 mm

Model 463

up to model year 2019

Wheelbase 2850 mm

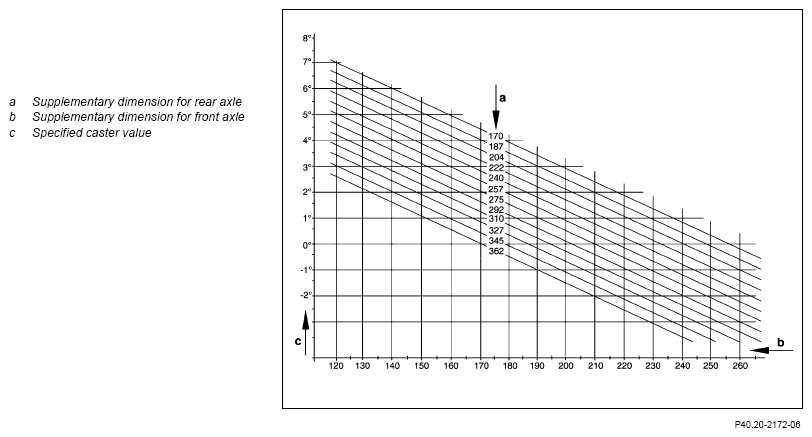

Nomogram for determining caster specified value (c) depending on spring travel for a wheelbase of 2850 mm

G13658031Courtesy of MERCEDES-BENZ USA
