Remove/Install Radial Shaft Sealing Ring On Drive Pinion - AR33.30-P-0550XGA

Model 463 with engine 176

as of model year 2019

Model 463 with engine 177

as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A

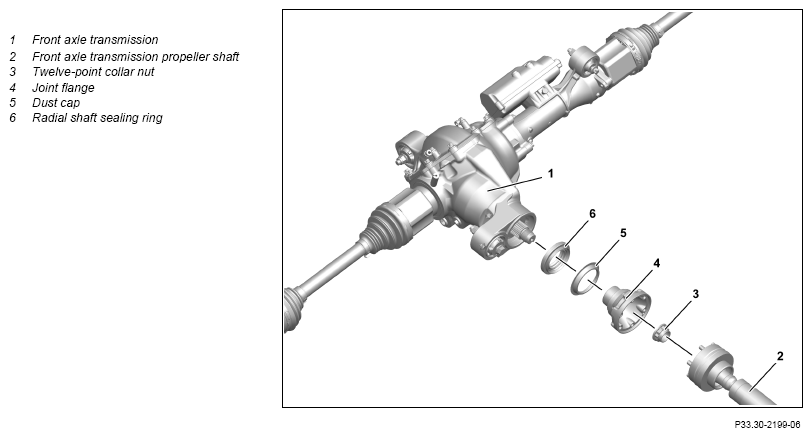

	Remove
1	Put transmission into neutral position.
2	Release parking brake.
3	Remove the wheel and tire assemblies from the front axle.		AR40.10-P-1102XG
4	Remove lower center engine compartment lining.		AR61.20-P-1105XG
5	Drain oil from front axle differential (1).		AR33.25-P-0300-01XGA
6	Remove propeller shaft of front axle differential (2).		AR41.10-P-0070XGA
7	Turn joint flange (4) by hand and check end play of bearing.	The bearing must be free of play. Otherwise the bearing and the gear set in the front axle differential (1) will be damaged. If there is end play or wear debris (shavings) in the drained oil: ↓ replace front axle differential (1).	AR33.30-P-0525XGA
8	Determine and note down friction torque on joint flange of drive pinion (4).		AR35.30-P-0472-02XGA
		Determine friction value at approx. 50 rpm. Use a cordless screwdriver for the measurement. Commercially available devices/tools  Battery-operated drill Torque meter	Fig 5
9	Remove twelve-point collar nut (3).	To do so, secure retainer wrench at joint flange (4) using 2 bolts and counterhold joint flange (4) using retainer wrench. Retainer wrench	Fig 7
10	Detach joint flange (4).	Puller	Fig 3
11	Remove dust cap (5).
12	Pry radial shaft sealing ring (6) out of front axle differential (1) using a suitable tool.	Do not damage seat of radial shaft sealing ring (6) in front axle differential (1). Otherwise leaks may occur.
	Install
13	Clean sitting surface of radial shaft sealing ring (6) in front axle differential (1).	Assembly cleaner	*BR00.45-Z-1028-04A
14	Check sitting surface of radial shaft sealing ring (6) in front axle differential (1) for damage.	If damage is found, ↓ replace front axle differential (1).	AR33.30-P-0525XGA
15	Coat radial shaft sealing ring (6) on inner sealing lip with transmission oil.
	Universal hypoid gear oils (specification 235.7)	Do not apply any transmission oil to sitting surface and outer circumference of radial shaft sealing ring (6). Otherwise leaks may occur. Replace radial shaft sealing ring (6).	BB00.40-P-0235-07A
16	Press radial shaft sealing ring (6) into front axle differential (1) until drift rests on housing.	Drift	Fig 4
17	Install dust cap (5).
18	Attach joint flange (4) to drive pinion.		AR35.30-P-0472-02XGA
		Commercially available devices/tools Torque angle gauge End play for drive pinion bearing	*BE35.30-P-1002-06A
		Friction torque of bevel gear with gaskets	*BE35.30-P-1001-06A
		Drive pinion collar nut rotation angle to align the tapered rollers	*BA35.30-P-1002-06A
		Collar nut of drive flange to drive pinion	*BA35.30-P-1001-06A
		Dial indicator holder	Fig 6
		Torque meter	Fig 5
		Dial Gauge	Fig 2
		Retainer wrench	Fig 7
19	Caulk twelve-point collar nut (3).
20	Install propeller shaft of front axle differential (2).		AR41.10-P-0070XGA
21	Add oil into front axle differential (1).		AR33.25-P-0300-01XGA
		Oil filler screw/drain screw to front axle transmission	*BA33.30-P-1006-03C
		Quick-acting adhesive Omnifit 100H (50 g)	*BR00.45-Z-1110-02A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Model 463.260/261 with engine 176 as of model year 2019	*BF33.30-P-1001-01A
		Model 463.276/277 with engine 177 as of model year 2019Hypoid gear oil Hand pump	Fig 1
22	Attach wheel and tire assemblies to front axle.		AR40.10-P-1102XG
23	Check front axle differential (1) for leak tightness.
24	Install bottom center engine compartment lining.		AR61.20-P-1105XG

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dial Gauge (001 589 53 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (000 589 65 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (741 589 02 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Torque Meter (001 589 49 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Retainer Wrench (717 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
