Check Oil Level In Front Axle Differential, Correct If Necessary - AR33.30-P-0010XGA
Model 463 with engine 176, 177
as of model year 2019
Model 463 with engine 264
as of model year 2019
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove lower center engine compartment lining. | AR61.20-P-1105XG | |
| 2 | Clean area around filling screw (3). | Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A |
| 3 | Remove filling screw (3). | ||
| Check | |||
| 4 | Check and correct oil level. | If the oil level is too low, ↓ add the hypoid gear oil using the hand pump until the hypoid gear oil reaches up to the lower edge of the filling screw threaded hole (3). |
BB00.40-P-0235A |

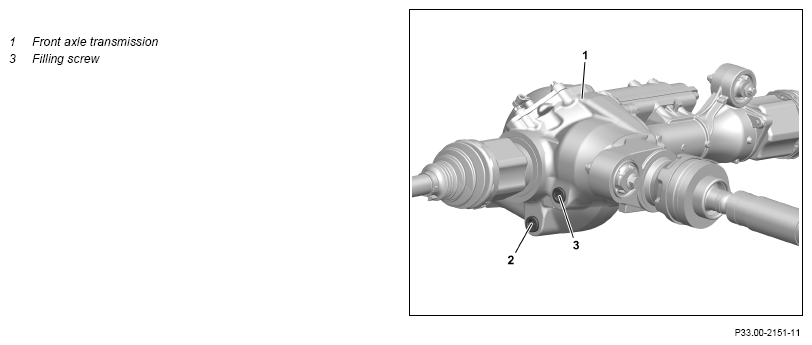

| Fig 1 | |||
| Install | |||
| 5 | Coat first thread pitch of filling screw (3) with Omnifit 100H quick-acting adhesive. | Quick-acting adhesive Omnifit 100H (50 g) | *BR00.45-Z-1110-02A |
| 6 | Screw in filling screw (3). | *BA33.30-P-1006-03C | |
| 7 | Check front axle differential (1) for leak tightness. | If leakage is present: ↓ Seal front axle differential (1). |
AR33.30-P-0542XGA |
| 8 | Install bottom center engine compartment lining. | AR61.20-P-1105XG |
FRONT AXLE GEAR
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA33.30-P-1006-03C | Oil filler screw/drain screw to front axle transmission | M24 | Nm | 90 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1110-02A | Quick-acting adhesive Omnifit 100H (50 g) | A 002 989 23 71 |
