Remove/Install Rear Seat Cushion - AR91.12-P-1020GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
Shown on model 463 up to model year 2015
Shown on model 463 as of model year 2016
Shown on model 463 up to model year 2015
Shown on model 463 up to model year 2015
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear seat | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.12-P-1700GW |
| 2 | Place rear seat with rear seat cover (2) on a suitable base | ||
| 3 | Remove seat backrest | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.12-P-1620GW |

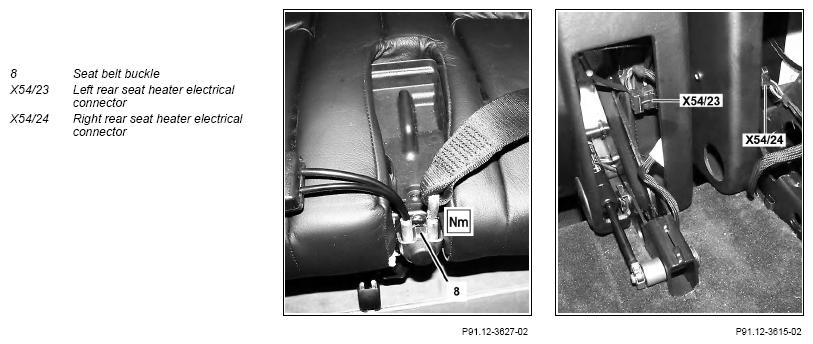

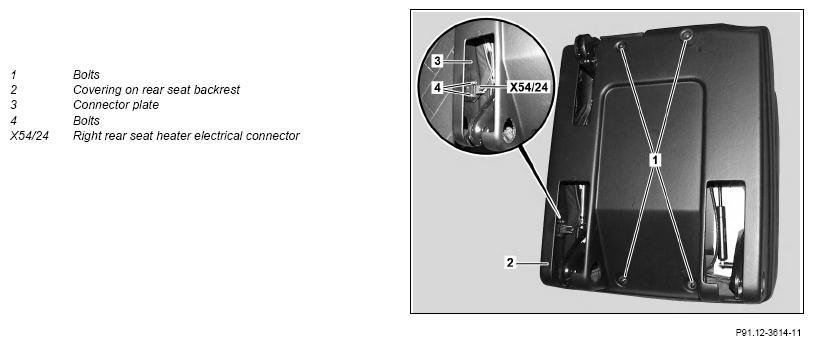

| 4 | Unclip and disconnect left rear seat heaters electrical connector (X54/23) or right rear seat heaters electrical connector (X54/24) from connector plate (3) | ||

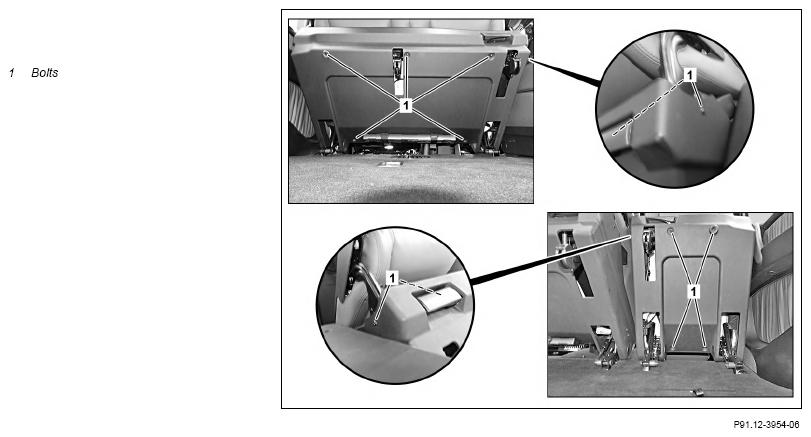

| 5 | Remove screws/bolts (1) and remove rear seat cover (2) | ||

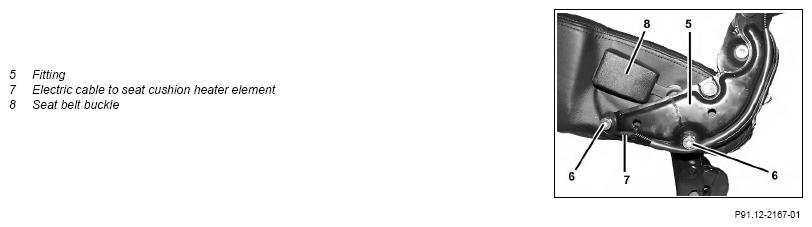

| 6 | Remove fitting (5) at seat cushion | ||
| 7 | Expose and detach heater pad electrical line (7) at seat cushion | ||
| 8 | Remove belt buckle (8) | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.40-P-1516GW |
| 9 | Install in the reverse order |
