Remove/Install Rear Seat And Rear Seat Backrest - AR91.12-P-1700GW
Model 463
as of model year 2013 up to model year 2019
| Risk of injury from fingers being pinched or jammed when working on gas struts under pressure | Only remove and install pneumatic springs when they are not under tension and when the components are properly secured. | AS00.00-Z-0012-01A | |
| Remove/install | |||
| 1 | Release rear seat and fold forward. | ||

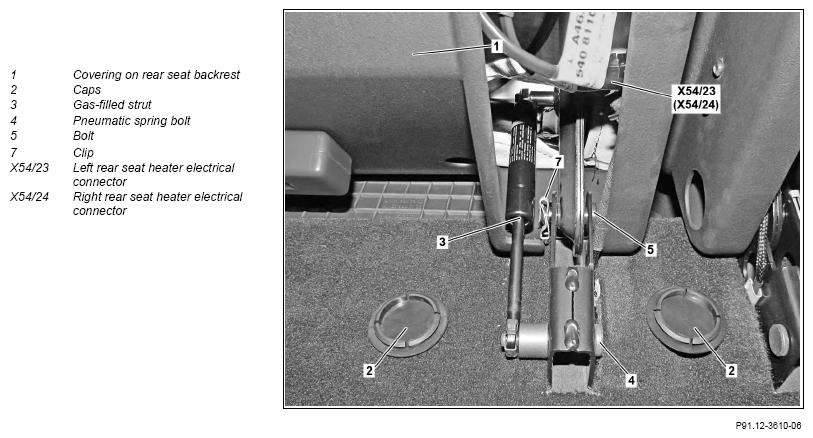

| 2 | Remove covers (2). | ||
| 3 | Disconnect left rear seat heater electrical connector (X54/23) or right rear seat heater electrical connector (X54/24). | ||
| 4 | Release bolt (4) of pneumatic spring (3) and remove. | ||
| 5 | Detach clip (7) and remove bolt (5). | ||
| 6 | Remove rear seat. | ||

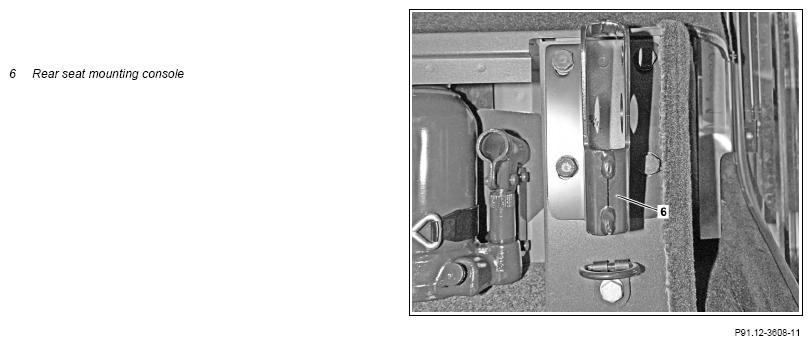

| 7 | Remove screws on rear seat mounting support (6). | *BA91.12-P-1003-03J | |
| 8 | Remove rear seat mounting support (6). | ||
| 9 | Install in reverse order. |
REAR SEATS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA91.12-P-1003-03J | Bolt, rear seat mounting console to floor | M8 | Nm | 36 | - |
| M10 | Nm | 72 | - | ||
