Remove/Install Rear Seat Belt Buckle - AR91.40-P-1516GW

Model 463 (except 463.242)

as of model year 2013 up to model year 2019

/FACELIFT 2012

Shown on right rear seat

Courtesy of MERCEDES-BENZ USA

Shown on right rear seat

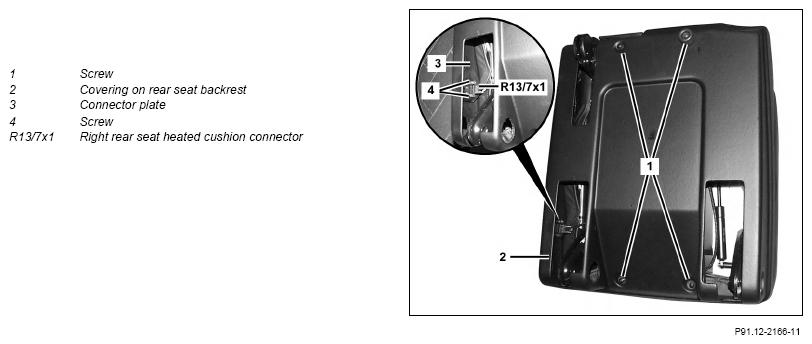

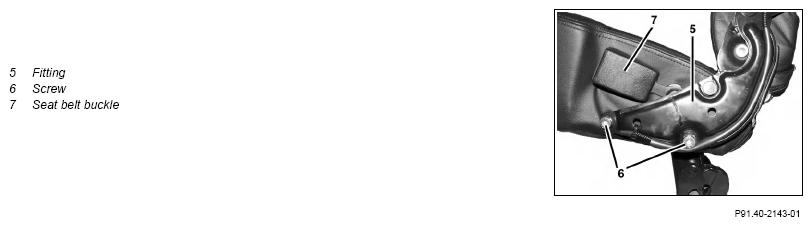

Fig 1: Rear Seat Belt Buckle Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012 (Shown On Right Rear Seat)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Remove rear seat and rear seat backrest	Remove/install rear seat and rear seat backrest	AR91.12-P-1700GW
	Place rear seat on a suitable surface with rear seat cover (2) facing upward
	Unclip right rear seat heated cushion connector (R13/7x1) or left rear seat heated cushion connector (R13/5x1) from connector plate
	Unscrew screws (1) and remove rear seat cover (2)
	Remove bolts (6) from rear seat on both sides	Move rear seat backrest with fitting (5) to one side. It is not necessary to detach the rear seat backrest from the rear seat cushion. Bolt, backrest to backrest fitting	*BA91.12-P-1002-03J
	Unclip cover of screw on seat belt buckle (7)
	Unscrew screw from seat belt buckle (7) and remove seat belt buckle (7)	Bolt on belt end fitting	*BA91.40-P-1001-01C
		Bolt, rear belt buckle	*BA91.40-P-1007-01C
	Install in the reverse order
