Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-P-1760GW

Model 463 (except 463.270/271)

as of model year 2013 up to model year 2019

MODIFICATION NOTES

31.10.2016 Air conditioning service unit added Operation step 1, 2, 3, 4, 6, 7, 8, 10, 11, 12, 13 WS83.00-P-0034B
31.10.2016 Test method changed Operation step 3
31.10.2016 Compressor oil specification changed Operation step 8 BB00.40-P-0362-01A
31.10.2016 General note added   AH83.30-P-0003-02A
31.10.2016 Safety note added   AS83.00-Z-0007-01A

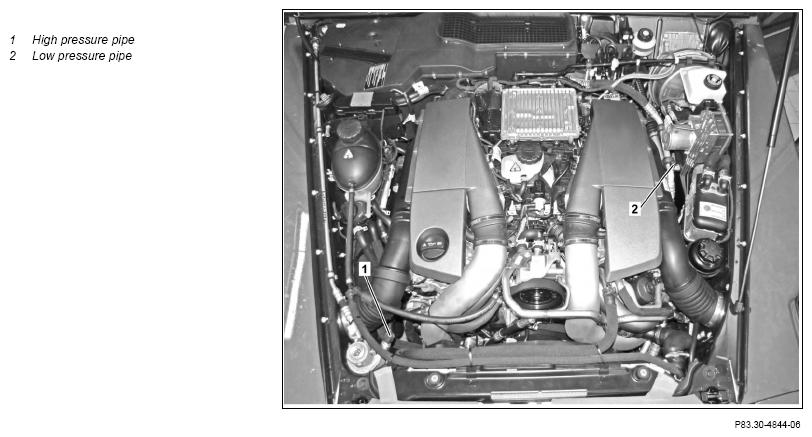

G13660062Courtesy of MERCEDES-BENZ USA
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0006-01A
  Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
  Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
  Notes on handling refrigerant R134a   AH83.30-N-0003-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Connect
1 Connect corresponding filler connection of air conditioning service unit to high-pressure line (1)
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
2 Connect corresponding filler connection of air conditioning service unit to low-pressure line (2)
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
  Analyze
3 Analyze refrigerant in A/C system Model 463 (except 463.270/271) as of model year 2013 up to model year 2019
with code Y65 (Alternative refrigerant)
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit IMPORTANT The refrigerant analysis must be performed using an analysis device integrated into the air conditioning service unit or an external analysis device with data transfer to the air conditioning service unit.
IMPORTANT A positive gas analysis is when the greenhouse gas exhibits a degree of purity of 92 %.
After a negative gas analysis.
↓
The gas analysis must be performed up to three times. After a third negative gas analysis, the analysis device must be verified in accordance with the operator's manual. If the analysis device is functional and the gas analysis negative, the refrigerant must be extracted from the A/C system and then be stored in a recycling vessel.
After positive gas analysis.
↓
The refrigerant must be extracted from the air conditioning system into the internal air conditioning service unit container.		 WS83.00-P-0034B
  Draining
4 Suction off refrigerant
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit IMPORTANT The quantity of refrigerant oil extracted from the refrigerant circuit must be documented.
IMPORTANT When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.		 WS83.00-P-0034B
INSPECT Check
5 Check specifications for replacing fluid reservoir When one of the following conditions is fulfilled: Vehicle is older than 5 years, refrigerant is dirt-laden (color ranges from dark gray to black), A/C compressor jammed, or refrigerant circuit was damaged (e.g. after an accident).
↓
Replace receiver/drier.
Model
463.202/234/237/239/272/273/274/275/342/346/348
as of model year 2013 up to model year 2019		 AR83.30-P-6520GW
  Evacuate and check
6 Clean refrigerant and evacuate refrigerant circuit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
7 Conduct vacuum test using air conditioning service unit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
  Filling
8 Add new compressor oil to the refrigerant circuit according to the quantity of refrigerant oil noted during extraction
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit NOTES
Only the approved compressor oil may be used.
If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period.
Daimler AG reserves the right to perform reexaminations.
NOTES
Correct quantity of refrigerant oil in refrigerant circuit.
In the event of an incorrectly measured quantity of refrigerant oil, the refrigerant compressor may be damaged.		 WS83.00-P-0034B
9 Correct oil level in the air conditioning system Model
463.202/234/237/239/272/273/274/275/342/346/348
as of model year 2013 up to model year 2019		 AR83.30-P-5252GW
10 Fill air conditioning system
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
    FLUID SPECIFICATION
Model 463.202/234/237/239/272/273/274/275/342/346/348 as of model year 2013 up to model year
2019 Filling capacity for refrigerant		 *BF83.30-P-1001-01A
  Pressure test
11 Conduct pressure test using air conditioning service unit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit In the event of a pressure drop during the pressure test
↓
check air conditioning system for leakage.		 WS83.00-P-0034B
    Model 463 (except 463.270/271)
as of model year 2013 up to model year 2019		 AR83.30-P-1761GW
  Disconnect
12 Disconnect corresponding filler connection of air conditioning service unit from high-pressure line (1)
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
13 Disconnect corresponding filler connection of air conditioning service unit from low-pressure line (2)
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit R134a   WS83.00-P-0031B
REFER TO SPECIAL TOOLS 000 588 10 82 00 R1234yf air conditioning service unit   WS83.00-P-0034B
AIR CONDITIONING

Number Designation Model 463.202/236/237 as of model year 2013 Model 463.234/239
BF83.30-P-1001-01A Filling capacity for refrigerant Refrigerant R134a g 875 900
Sheet   BB00.40-P-0361-00A BB00.40-P-0361-00A
Refrigerant R1234yf g - 780
Sheet   - BB00.40-P-0361-01A
AIR CONDITIONING

Number Designation Model 463.272/273 Model 463.274/275
BF83.30-P-1001-01A Filling capacity for refrigerant Refrigerant R134a g 875 875
Sheet   BB00.40-P-0361-00A BB00.40-P-0361-00A
Refrigerant R1234yf g 820 820
Sheet   BB00.40-P-0361-01A BB00.40-P-0361-01A
AIR CONDITIONING

Number Designation Model 463.342
Model 463.348 1#		 Model 463.348 2#
BF83.30-P-1001-01A Filling capacity for refrigerant Refrigerant R134a g 900 925
Sheet   BB00.40-P-0361-00A BB00.40-P-0361-00A
Refrigerant R1234yf g 780 780
Sheet   BB00.40-P-0361-01A BB00.40-P-0361-01A
AIR CONDITIONING

Number Designation Model 463.346 1# as of model year 2013 Model 463.346 2# as of model year 2013
BF83.30-P-1001-01A Filling capacity for refrigerant Refrigerant R134a g 875 925
Sheet   BB00.40-P-0361-00A BB00.40-P-0361-00A
Refrigerant R1234yf g - -
Sheet   - -
