Remove/Install Slide Rails On Primary Chain Drive - AR05.10-P-8482MNA
Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
Shown on ENGINE 177

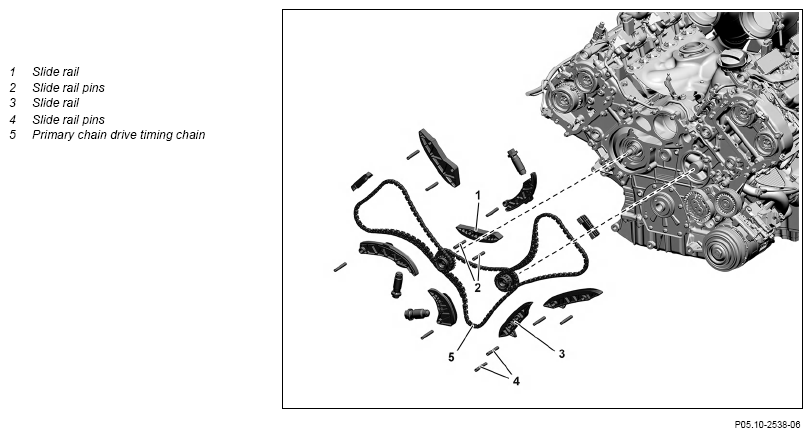

Fig 1: Slide Rails On Primary Chain Drive Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Engine 177)
| Remove/install | |||
| 1.1 | Remove left timing chain for the secondary chain drive | When removing the slide rail (1). | |
| AR05.10-P-7614MNA | |||
| 1.2 | Remove oil pump | When removing the slide rail (3). | |
| AR18.10-P-6020MNA | |||
| 2.1 | Remove left tensioning rail for the secondary chain drive | When removing the slide rail (1). | |
| AR05.10-P-8129MNA | |||
| 2.2 | Remove oil pump chain | When removing the slide rail (3). | |
| AR18.10-P-2145MNA | |||
| 3 | Remove primary chain drive chain tensioner | AR05.10-P-7800MNA | |
| 4 | Remove sliding rail bolt pin (2) | When removing the slide rail (1). |
Fig 2 |
| Fig 3 | |||
| 5 | Remove sliding rail bolt pin (4) | When removing the slide rail (3). |
Fig 2 |
| Fig 3 | |||
| 6 | Remove slide rail (1) upwards and slide rail (3) downwards | ||
| 7 | Check slide rails (1, 3) for wear, galling and damage and replace slide rails (1, 3) if necessary | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check engine oil level; correct if necessary | ||
| Engine 176 in model 463 up to model year 2019 | AP18.00-P-0101GE | ||
| Engine 177 in model 205 | AP18.00-P-1848U | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check engine for leaktightness while it is running |
