Replace Front Radial Shaft Sealing Ring - AR03.20-P-3002MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Shown on ENGINE 177

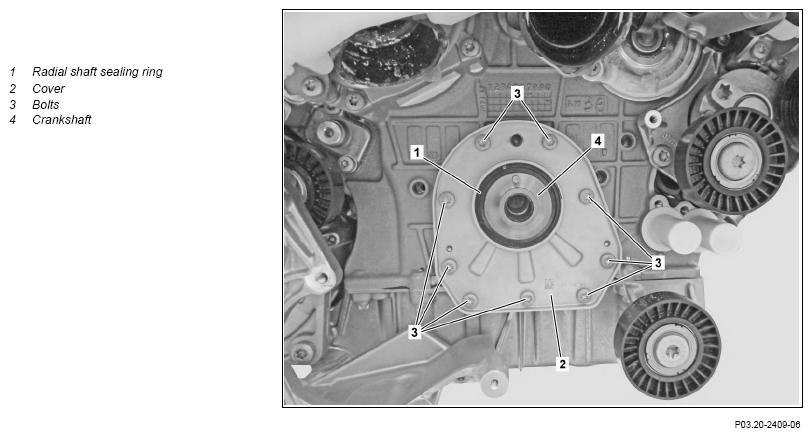

Fig 1: Front Radial Shaft Sealing Ring Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Engine 177)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Remove/install
1	Remove belt pulley/vibration damper		AR03.30-P-1600MNA
2	Remove screw/bolt (3)	Screw/bolt, front of bottom half of crankcase to crankcase	*BA01.40-P-1001-01ZA
3	Remove front radial shaft sealing ring (1) with cover (2) Notes on distribution of sealant on crankcase end cover	The front radial shaft sealing ring (1) and cover (2) form a unit and must be replaced together.	AH01.40-P-1000-09MNA
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Insertion tool	Fig 2
	Check
4	Check crankshaft (4) at the sealing surface for galling of the radial shaft sealing ring (1)	If damage is present ↓ Replace crankshaft (4).	AR03.20-P-4351MNA
5	Install in the reverse order
6	Check engine oil level; correct if necessary	Engine 176 in model 463 up to model year 2019	AP18.00-P-0101GE
		Engine 177 in model 205 Engine 178 in model 190	AP18.00-P-1848U
7	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run and check engine for leaktightness	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

Fig 2: Identifying Insertion Tool (177 589 00 43 00)

Courtesy of MERCEDES-BENZ USA
