Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Shown on ENGINE 177

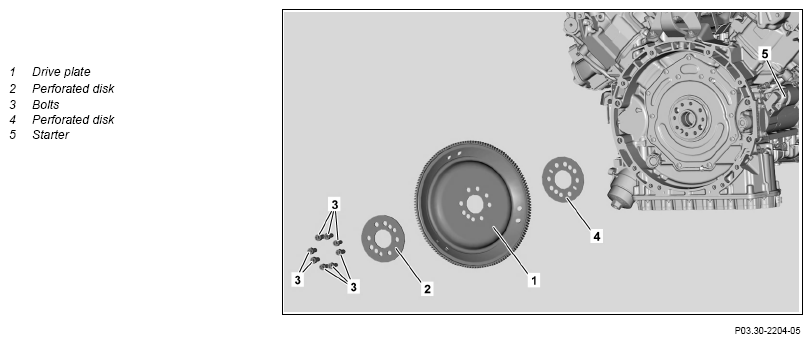

Fig 1: Flywheel/Drive Plate Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Engine 177)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove transmission with starting clutch	Engine 177 in model 205 with transmission 722.93	AR27.10-P-0505MNA
1.2	Remove drive shaft with drive shaft housing	Engine 178 in model 190	AR41.50-P-0011MNB
1.3	Remove transmission with torque converter	Engine 176 in model 463 with transmission 722.9 up to model year 2019	AR27.10-P-0500GW
2	Place starter (5) to one side with lines still connected
3	Insert retaining lock for starter ring gear in starter opening	Engine 178 in model 190	AR03.30-P-1600-06MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR03.30-P-1600-06MNA
		Socket wrench bit	Fig 3
		Retaining lock	Fig 2
4	Mark position of the perforated disk (2) for clutch plate (1) in color	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205
5	Remove screws (3)	Engine 178.9 in model 190Bolt, two-mass flywheel to crankshaft	*BA03.30-P-1002-01W
		Engine 176 in model 463 up to model year 2019 Engine 177.980 in model 205Bolt, drive plate to crankshaft	*BA03.30-P-1003-01W
6	Remove perforated disk (2)	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 The colored markings on the perforated disk (2) and on the clutch plate (1) must match. Vibrations will occur in the drivetrain otherwise.
7	Remove drive plate (1)	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 The perforated disk (4) remains on the engine.
8	Install in the reverse order

Fig 2: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
