Remove/Install Throttle Valve Actuator - AR09.41-P-1330MNA
Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
| Remove/install | |||
| 1 | Remove left charge air cooler | When removing left-hand throttle valve actuator (1). Engine 176 in model 463 up to model year 2019 |
AR09.41-P-6827MNF |
| Engine 177 in model 205 | AR09.41-P-6827MNA | ||
| 2 | Remove charge air cooler | When removing right-hand throttle valve actuator (1). Engine 176 in model 463 up to model year 2019 |
AR09.41-P-6828MNF |
| Engine 177 in model 205 | AR09.41-P-6828MNA | ||

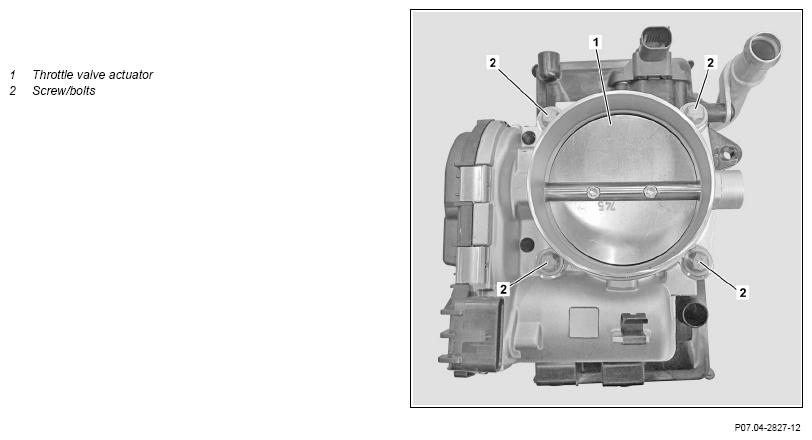

| 3 | Remove screw/bolts (2) | *BA09.41-P-1008-01X | |
| 4 | Remove left or right throttle valve actuator (1) | ||
| 5 | Detach charge air hose on left or right throttle valve actuator (1) | Engine 176 in model 463 up to model year 2019 When replacing the left or right throttle valve actuator (1). | |
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 | 9 |
