Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190
MODIFICATION NOTES
| 11.09.2015 | Screw/bolt, charge air distributor to cylinder head | BA09.41-P-1004-01X |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 | 13 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |

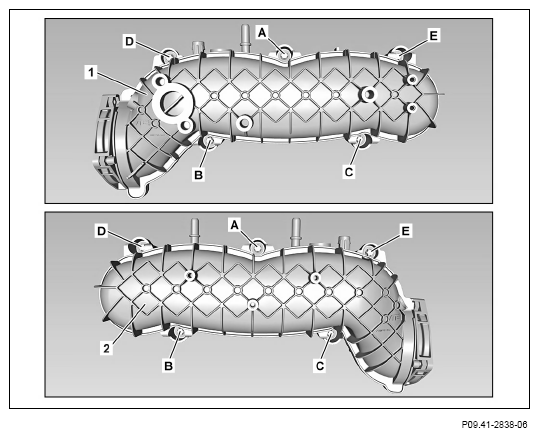

Shown on charge air distributor of engine 178 in model 190
- Tighten screw/bolts (A to E) of the left and right charge air distributor (1, 2) in the alphabetic sequence
.

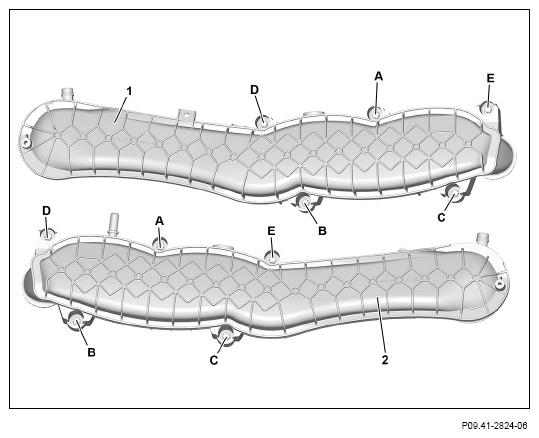

Shown on charge air distributor of engine 177 in model 205
Shown on charge air distributor of engine 176 in model 463
