Remove/Install Right Charge Air Distributor - AR09.41-P-8685XGA
Engine 176 in model 463
as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1152XGA | |
| 2 | Remove cooling module | AR20.20-P-4000XGA | |
| 3 | Remove coolant expansion reservoir from bracket and place to one side with connected lines | AR20.30-P-4950XGA | |
| 4 | Remove right front wheel | AR40.10-P-1102XG | |
| 5 | Remove fender liner in right front fender | AR88.10-P-1300XG | |

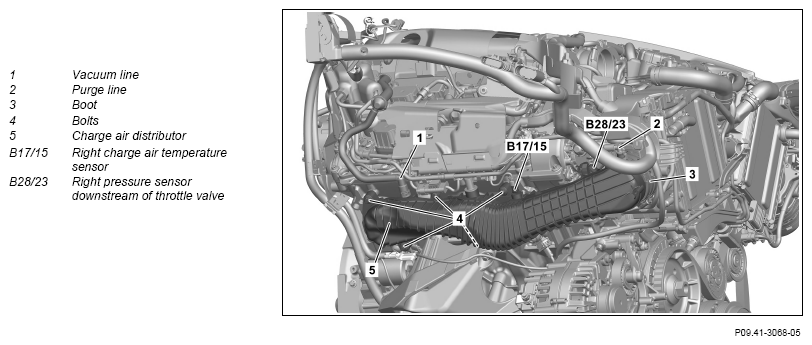

| 6 | Remove vacuum line (1) from charge-air distributor (5) | ||
| 7 | Release and disconnect electrical connector o right charge air temperature sensor (B17/15) | ||
| 8 | Detach clamp of boot (3) at charge-air distributor (5) | *BA09.41-P-1002-01X | |
| 9 | Remove screws (4) and remove charge-air distributor (5) from cylinder head | Tightening procedure for charge air distributor |
AR09.41-P-8683-01XGA |
| *BA09.41-P-1004-01X | |||
| 10 | Remove purge line (2) from charge-air distributor (5) | ||
| 11 | Release and disconnect electrical connector o right pressure sensor downstream of throttle valve (B28/23) | ||
| 12 | Remove charge-air distributor (5) | ||
| 13 | Remove right pressure sensor downstream of throttle valve (B28/23) | When installing new charge-air distributor (5). | AR09.41-P-1031XGA |
| 14 | Remove right charge air temperature sensor (B17/15) | When installing new charge-air distributor (5). | AR09.41-P-0042XGA |
| 15 | Remove guides of seals from charge-air distributor (5) | When installing new charge-air distributor (5). | |
| 16 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Perform an engine test run and check engine for proper function |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
