Remove/Install Right Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0042XGA
Engine 176 in model 463
as of model year 2019

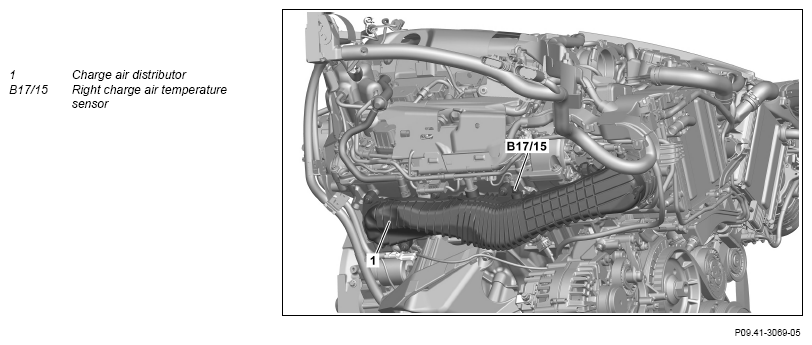

Fig 1: Right Charge Air Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1152XGA | |
| 2 | Release and disconnect electrical connector at right charge air temperature sensor (B17/15) | ||
| 3 | Turn right charge air temperature sensor (B17/15) clockwise and remove upwards | ||
| 4 | Seal opening at charge-air distributor (1) with a clean, lint-free rag | ||
| 5 | Check sealing ring of right charge air temperature sensor (B17/15) for damage | For damage ↓ Replace right charge air temperature sensor (B17/15). |
|
| 6 | Install in the reverse order | ||
| 7 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper function |
