(Remove/Install Brake Lines - AR42.10-P-0020A)

Model 163, 164, 168, 169, 170, 171, 202, 203, 208, 209, 210, 211, 215, 219, 220, 230, 245

Model 463 up to model year 2013 except code 979 (Special protection MB Guard)

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
1	Remove respective brake line (2).	Install brake line (2) free of tension and with correct torque on threaded connection.
		Model 163.113 #A as of 289565 Model 163.113 #A up to 289564 Model 163.113 #X as of 754620 Model 163.113 #X up to 754619 Model 163.128/172/174/175 Model 163.136 Model 163.154 #A as of 289565 except USA Model 163.154 #A up to 289564 Model 163.157 except USA Model 163.157 USA Model 170 Model 171 Model 202 Model 203 Model 208 Model 209 Model 210 Model 211 ABR Model 211 SBC Model 215 Model 220 Model 230 except code P99 (Special model "AMG Black Series") Model 230 with code P99 (Special model "AMG Black Series") Brake line to brake hose	BA42.10-P-1001-04A
		Model 168 Brake line to brake hose	BA42.10-P-1002-04C
		Model 219 ABR Union nut, brake line to brake hose	BA42.10-P-1001-04I
		Model 169 Model 245 Brake line to brake hose	BA42.10-P-1003-04H
		Model 164 Brake line to brake hose	BA42.10-P-1002-04J
		Model 463 (except 463.270/271/272/273) up to model year 2013 except code 979 (Special protection MB Guard) Model 463.270/271 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 except code 979 (Special protection MB Guard) Brake line to brake hose	*BA42.10-P-1001-04B
2	Define length of new brake line (2) to match the old brake line (2).	Two additional connecting points per brake line (2) are permissible for part replacement of a brake line (2): • Only part replacement for brake lines (2) with line diameter of 0 4.75 mm (wheel line) Heater lines (master brake cylinder to hydraulic unit), SBC return lines, plastic-coated lines and lines with flexible part are excluded from the repair.
3		The constellation of the connecting point must be correct and there must be no soiling. Use specified cable connectors for installation only.

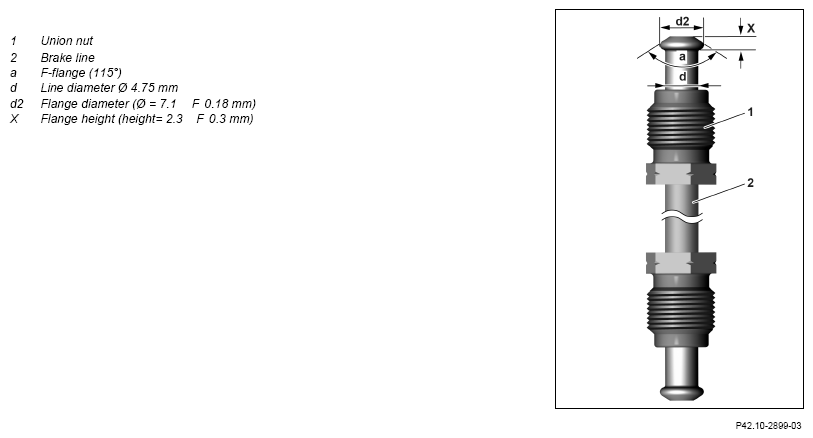

4	Make flange on brake line (2).	Before making the flange, fit the union nut (1) to the respective brake line (2). On Mercedes-Benz cars only brake lines (2) with an F-flange (a) as per DIN 74234 may be used. Flaring tool	Fig 1
5	Adapt new brake line (2).	Adapt brake line (2) using bending tool to old configuration. A bending radius of 13 mm must not be dropped below. When routing the brake line (2) make sure there is sufficient distance to other components. There must be no kinking and no line narrowing on the brake line (2).
6	Install in the reverse order.
	Check
7	Check surface of brake line (2).	Check surface of brake line (2) for scratches and paint damage, if necessary touch up any paint damage. Zinc dust paint spray can	*BR00.45-Z-1055-07A
8	Thoroughly wax brake line (2) after installing it	Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1011-05A
9	Bleed brake system.	Model 170, 202, 208, 210	AR42.10-P-0010A
		Model 169.006/007/008/031/032/033/034/090/306/307/308/331/332/333/334 Model 245.207/208/231/232/233/234	AR42.10-P-0010AK
		Model WDB168.032, 168.006/007/008/009/031/033/035/109/131/132/133/135	AR42.10-P-0010GC
		Model 163.113/128/136/154/157/172/174/175	AR42.10-P-0010GH
		Model 164	AR42.10-P-0010GZ
		Model 215 Model 220 except code 979 (Special protection MB Guard) except code Z07 (B7 armoring on special protection version)	AR42.10-P-0010I
		Model 220 with code 979 (Special protection MB Guard) with code Z07 (B7 armoring on special protection version)	AR42.10-P-0010MB
		Model 203, 209	AR42.10-P-0010P
		Model 211, 219 with Adaptive Brake (ABR) Model 230 with code P99 (Special model "AMG Black Series")	AR42.10-P-0010T
		Model 230 except code P99 (Special model "AMG Black Series")	AR42.10-P-0012R
		Model 171	AR42.10-P-0010V
		Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard)	AR42.10-P-0010GG
		Model 463.270/271 up to model year 2013 except code 979 (Special protection MB Guard)	AR42.10-P-0010GX
10	Check brake system for leak tightness.	Model 463.270/271 up to model year 2013 except code 979 (Special protection MB Guard)	AR42.10-P-0015GX
		Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard) Disk brakes on front axle	AR42.10-P-0015GG
		Model 170, 202, 203, 208, 209, 210	AR42.10-P-0015A
		Model 169.006/007/008/031/032/033/034/090/306/307/308/331/332/333/334 Model 245.207/208/231/232/233/234	AR42.10-P-0015AK
		Model 168.006/007/008/009/031/032/033/035/109/131/132/133/135	AR42.10-P-0015GC
		Model 163.113/128/136/154/157/172/174/175	AR42.10-P-0015GH
		Model 215, 220	AR42.10-P-0015I
		Model 211, 219 with Adaptive Brake (ABR)	AR42.10-P-0015T
		Model 171	AR42.10-P-0015V
		Model 164	AR42.10-P-0015GZ
11	Perform brake test on test stand.
		Model 163, 164, 168, 169, 170, 171, 202, 203, 208, 209, 210, 211, 215, 219, 220, 230, 245 (except 245.286)	AP42.00-P-4290BA
		Model 463 up to model year 2013 except code 979 (Special protection MB Guard)	AP42.00-P-4290G

Fig 1: Identifying Flaring Tool (000 589 20 99 00)

Courtesy of MERCEDES-BENZ USA
