Remove/Install Wheels - AR40.10-P-1100XG

Model 463

as of model year 2019

G13658008Courtesy of MERCEDES-BENZ USA
G13658009Courtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or Align vehicle between vehicle lift columns and AS00.00-Z-0010-01A
  toppling off of the lifting platform. position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.
  Information on tires/rims   AH40.10-P-9411-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Preparatory tasks
1 Raise vehicle.   AR00.60-P-1006A
2.1 Remove wheel trim. If installed.
2.2 Remove screw-on AMG hub covers in center lock design. If installed.
IMPORTANT The socket wrench for the AMG hub covers in the center lock design is located in the vehicle tool kit.
REMOVING Remove

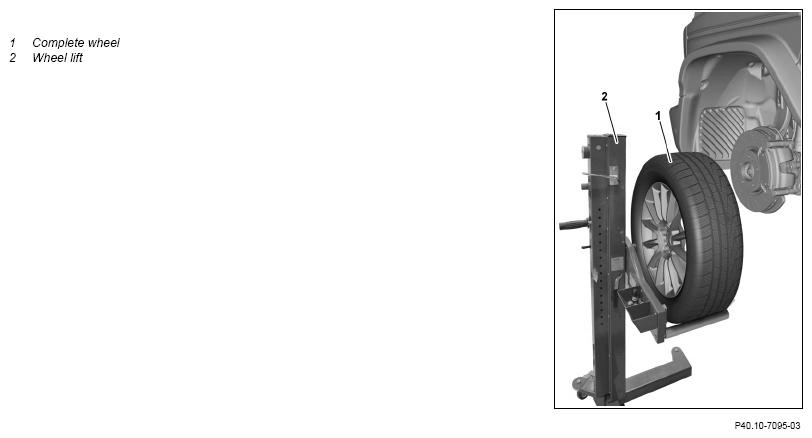

3 Remove wheel and tire assemblies (1). IMPORTANT Use commercially available devices/tools only for GERMANY ONLY a wheel lift dolly (2) with a rim size from 17".
INSPECT Check
4 Check and clean threaded wheel connection components, if necessary and protect against corrosion. INSTALLATION IMPORTANT Before mounting a wheel and tire assembly (1), remove minor soiling using a rag. Check there is sufficient heat-resistant lubricating paste on wheel hub, apply more if necessary.
Paste, hot lubrication 1 kg, DBL 6879.20 If extensive soiling is present,
↓
perform thorough cleaning and anti-corrosion protection measures.		 *BR00.45-Z-1005-06A
      AR40.10-P-1100-02A
5
REFER TO MAINTENANCE		 Check condition of wheel and tire assemblies (1). On the wheel and tire assemblies (1) to be installed.
IMPORTANT Damage, such as crack formation, tire tread depth.		 AP40.10-P-4051EW
INSTALLING Install
6 Mount wheel and tire assemblies (1). IMPORTANT Use commercially available devices/tools only for GERMANY ONLY a wheel lift dolly (2) with a rim size from 17".

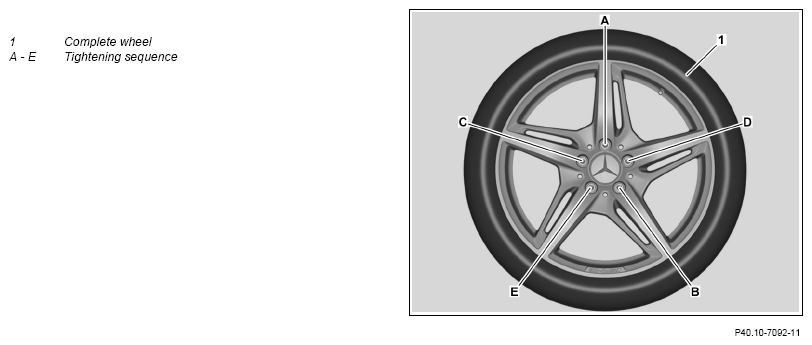

INSTALLATION IMPORTANTInstallation:  Note tightening sequence (A - E) and the different tightening torque of the wheel bolts.
TORQUE SPECIFICATION Wheel bolt to steel rim		 *BA40.10-P-1001-01D
    TORQUE SPECIFICATION Wheel bolt to light alloy rim *BA40.10-P-1002-01D
7.1 Mount wheel trim. If installed.
7.2 Mount screw-on AMG hub covers in center lock design. If installed.
IMPORTANT The socket wrench for the AMG hub covers in the center lock design is located in the vehicle tool kit.
8 Lower the vehicle.   AR00.60-P-1006A
9
REFER TO MAINTENANCE		 Correct tire pressure on front and rear axle. Only when changing tire. AP40.15-P-4061A
10
REFER TO MAINTENANCE		 Restart tire pressure monitor (TPM) or tire pressure loss warning via the instrument cluster. Only when changing tire. AP40.15-P-4069U
11 Check maximum speed limitation in instrument cluster, correct if necessary. Only when changing tire.
IMPORTANT Note tire speed rating.
IMPORTANT An appropriate adhesive label must be attached in the driver's field of view if the permissible maximum speed of an M+S tire is below the maximum speed of the vehicle.
WHEELS

Number Designation Model 463 as of model year 2019
BA40.10-P-1001-01D Wheel bolt to steel rim Nm 150
WHEELS

Number Designation Model 463 as of model year 2019
BA40.10-P-1002-01D Wheel bolt to light alloy rim Nm 150
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
